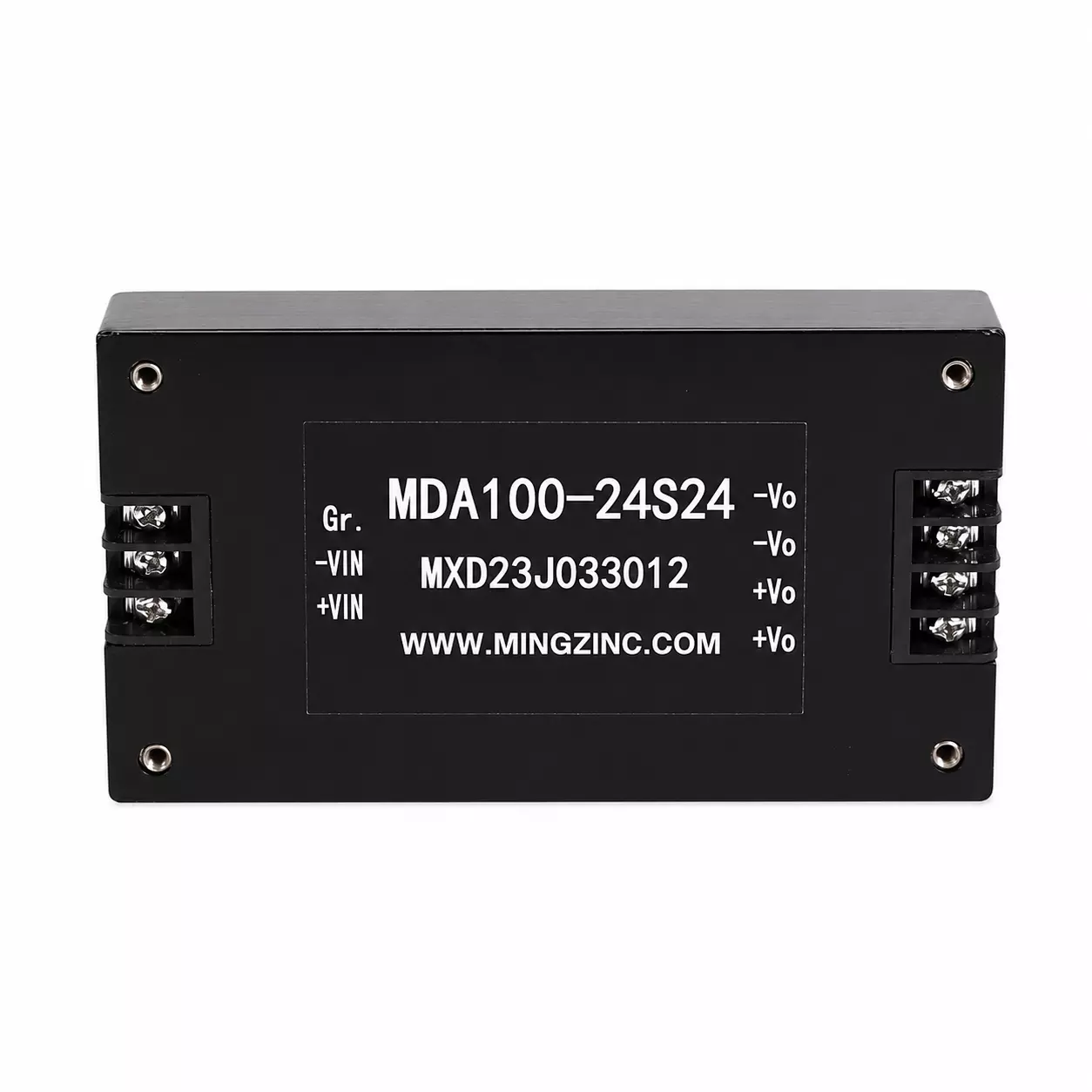

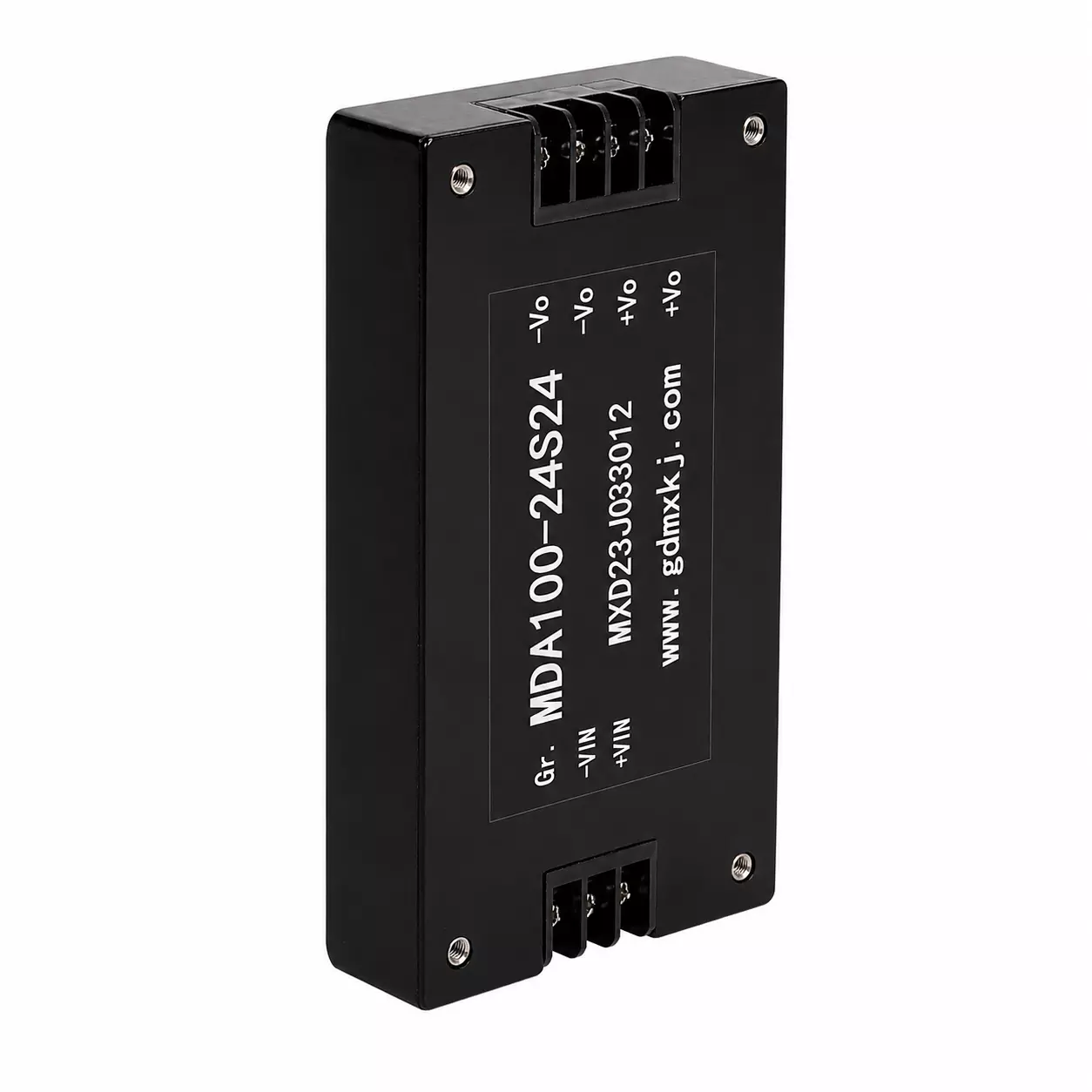

The MINGZINC MDA100-24S24 is a 100W isolated DC-DC converter designed to provide reliable 24VDC auxiliary power for industrial I/O modules, industrial sensors, remote I/O systems, field controllers and factory automation equipment.
Featuring a wide 18–36VDC input, regulated 24VDC output, galvanic isolation, EMI-resistant design, and comprehensive industrial protection, it delivers stable power in environments affected by voltage fluctuations, electrical noise, vibration, dust and high temperatures.
As a professional DC-DC converter manufacturer, MINGZINC provides reliable industrial power modules for equipment manufacturers, system integrators and power distributors worldwide. Besides standard products, we support OEM & ODM power supply customization, helping customers develop custom power solutions for industrial automation, process control and smart factory applications.
Video Description
I. MODELS LIST
Single Channels Output
|
Model |
Input Voltage (VDC) |
Input Voltage Range(VDC) |
Output voltage(VDC) |
Output Current(A) |
Output Power(W) |
Ripple And Noise（mv） |
Efficiency (Typ) |
|
MDA100-24S24 |
24VDC |
18-36VDC |
24VDC |
4.16A |
100W |
200 |
86% |
II. FEATURES
|
1 |
Π type input filter |
|
2 |
High power density |
|
3 |
2times 4times voltage input |
|
4 |
Design for high reliability, long lifetime |
|
5 |
Easy installation, dual side pin out |
|
6 |
Attractive outline design |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
|
Rated value(VDC) |
Voltage Range(VDC) |
|
24 VDC |
18-36 VDC |
IV. OUTPUT CHARACTERISTIC
|
Parameter |
Value |
|
Power |
100 W |
|
Output Voltage |
24VDC |
| Output Current | 4.16A |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.5% |
|
Voltage Set-point Accuracy |
±2% |
|
Output Current Limiting |
120%(Typ) |
V. PROTECTIVE CHARACTERISTIC
|
1 |
Input under voltage protection |
|
2 |
Input over voltage protection |
|
3 |
Over temperature protection |
|
4 |
Output over current protection |
|
5 |
Output short circuit protection |
GENERAL CHARACTERISTIC
|
Parameter |
Value |
|
Switching Frequency |
100-200KHz |
|
lsolation Resistance |
200MΩ |
lsolation Voltage
|
Parameter |
Value |
|
Input-Output |
>1500VDC |
|
Input-Case |
>1050VDC |
|
Output-Case |
>500VDC |
Environmental Characteristics
|
Parameter |
Value |
|
|
Case Temperature |
Industry |
-25 – +85℃ |
|
Military l |
-40 – +85℃ |
|
|
Military II |
-55 – +85℃ |
|
|
Storage Temperature |
Industry |
-45 – +105℃ |
|
Military |
-55 – +105℃ |
|
VI. MECHANICAL DRAWING AND PIN DEFINITION
Ideal for:
Industrial I/O Modules
Industrial Sensors
Remote I/O Systems
Field Controllers
Process Controllers
Factory Automation Equipment
Industrial Control Systems
Smart Manufacturing Equipment
Industrial Communication Devices
Distributed Control Systems (DCS)
PLC Automation Systems
