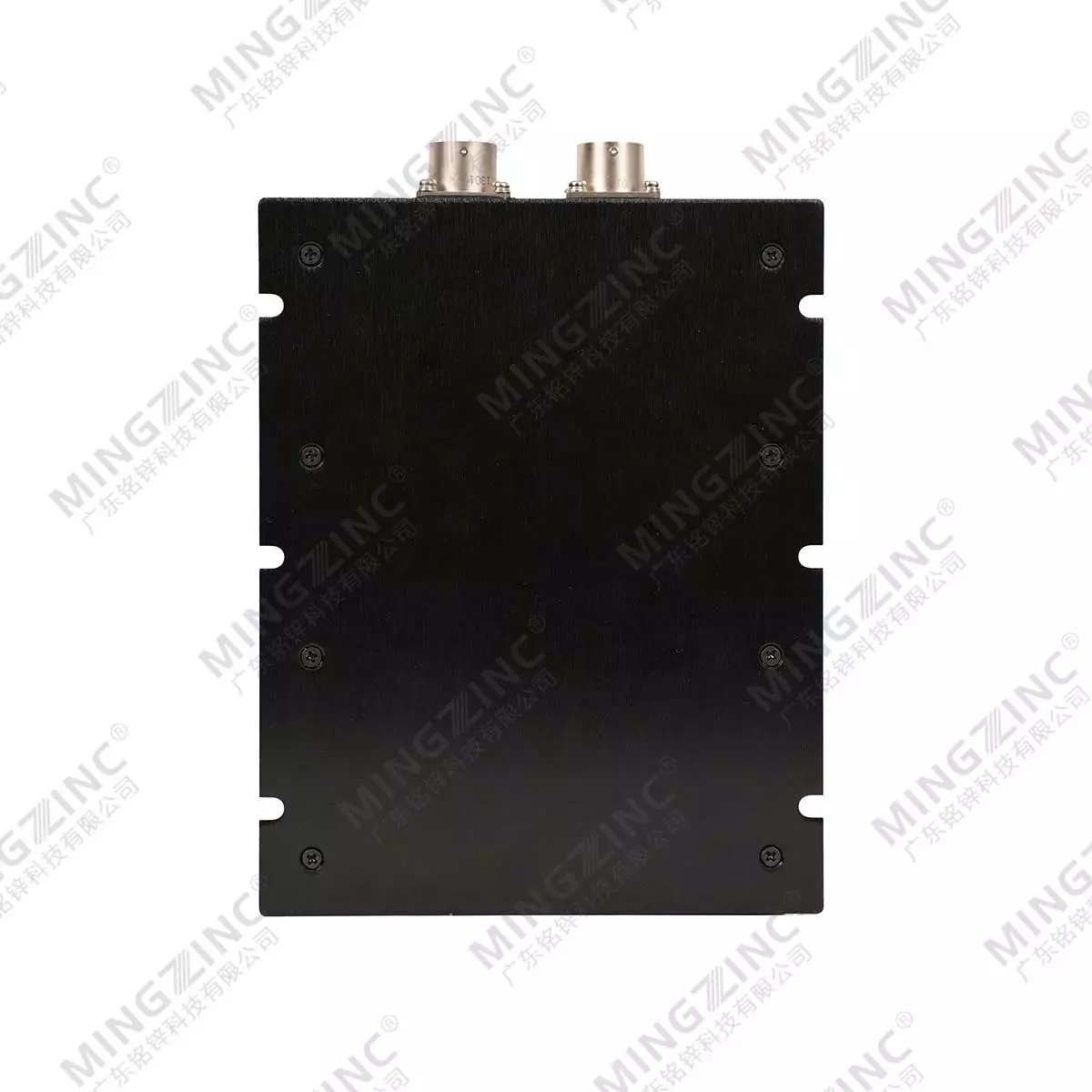

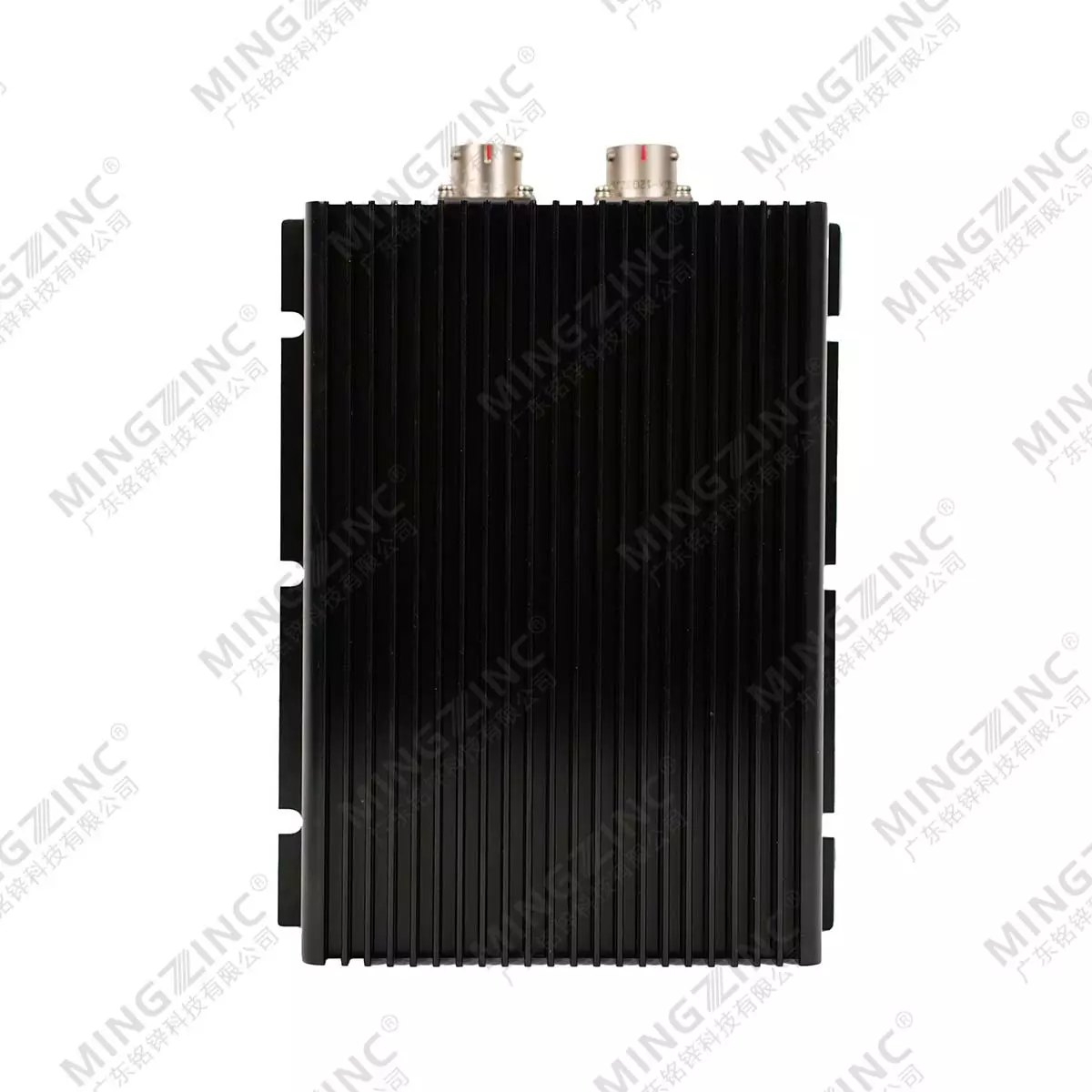

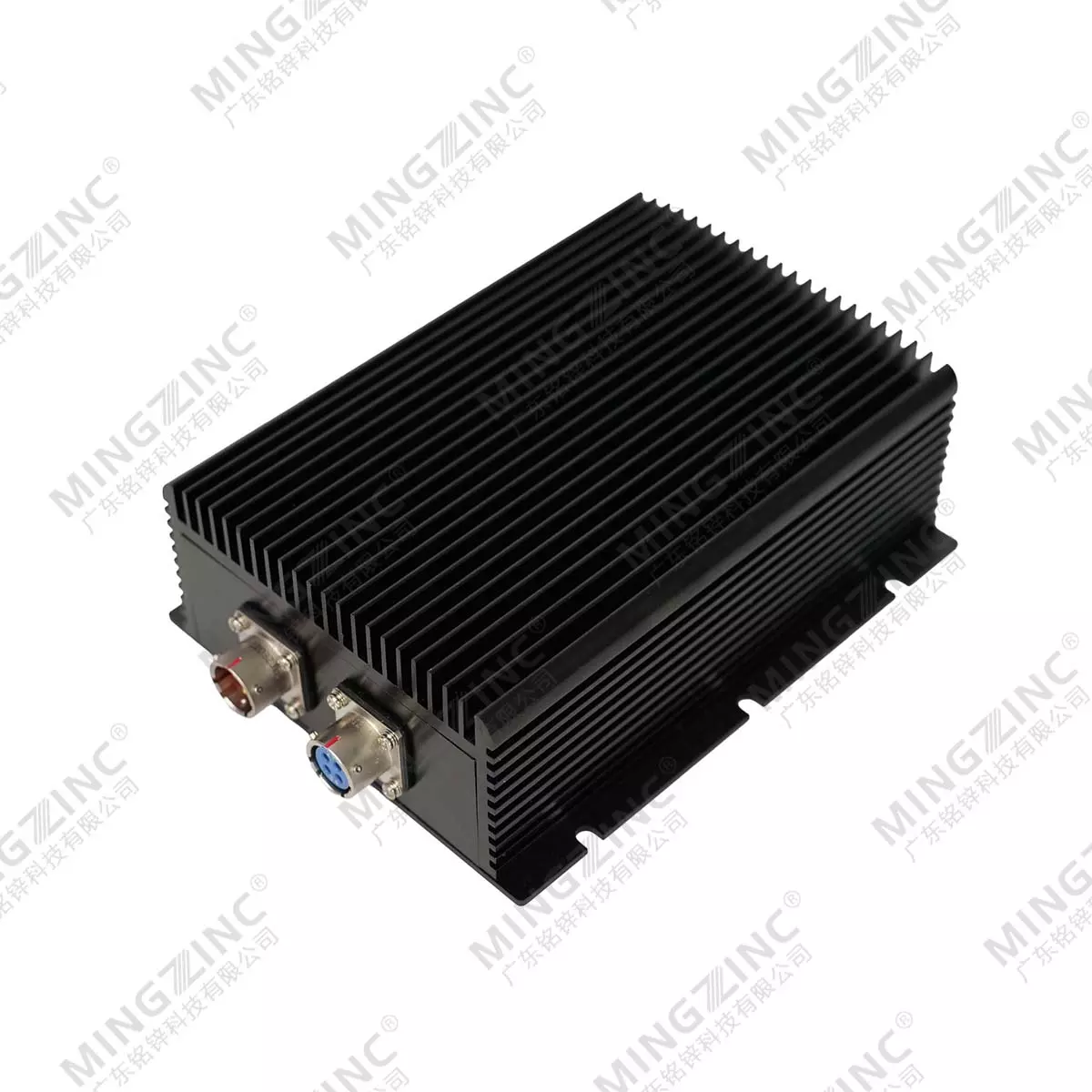

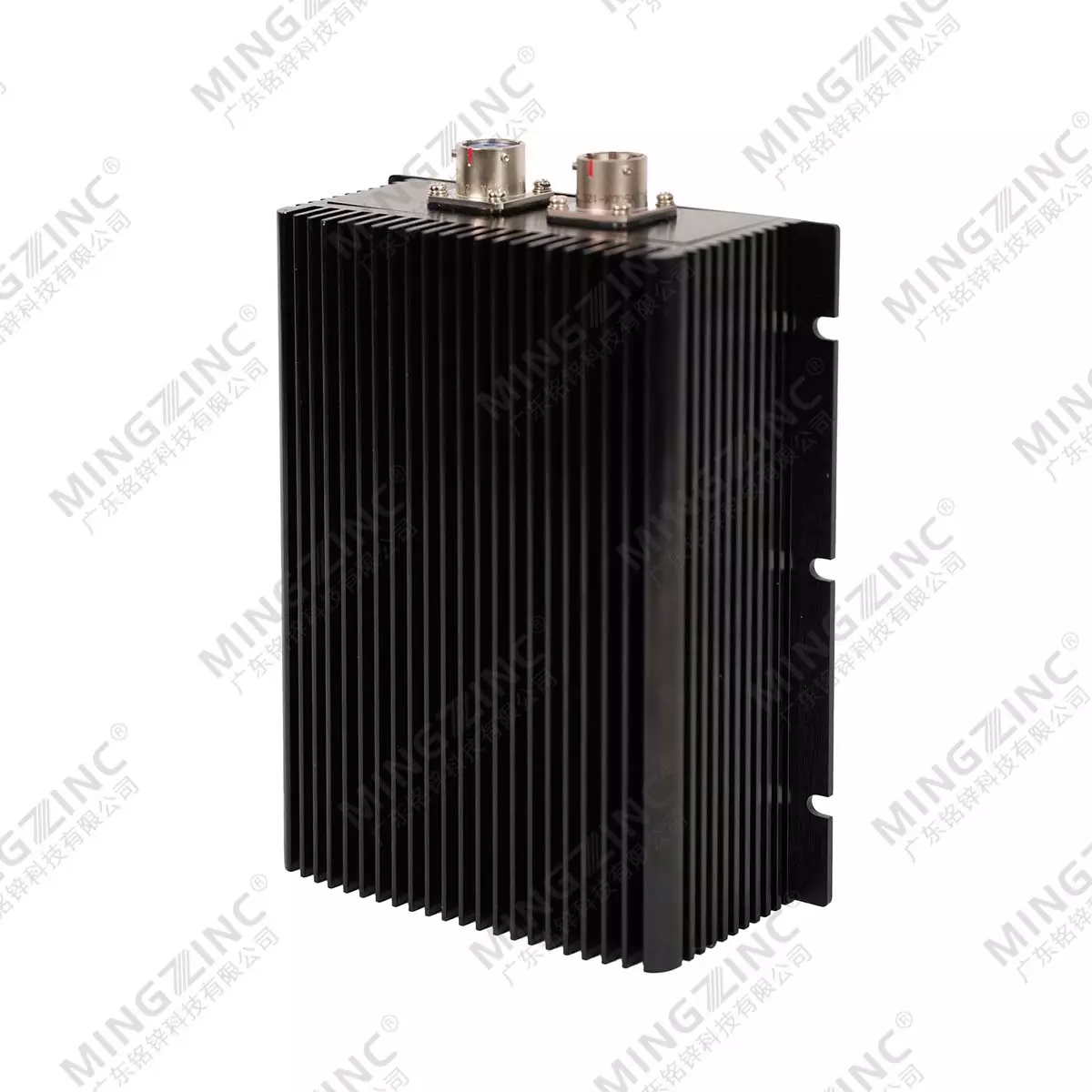

MDI-H 600-1000W Isolated DC-DC Converters Modules
Products
Latest News
Video Description
I. MODELS LIST
Single Channels Output
|
Model |
Input Voltage (VDC) |
Input Voltage Range(VDC) |
Output Voltage(VDC) |
Output Current(A) |
Output Power(W) |
Ripple And Noise(mv) |
Efficiency (Typ) |
|
MDI-H1000-24S27 |
24VDC |
18-36VDC |
27VDC |
37A |
500W |
200 |
88% |
|
MDI-H1000-48S24 |
48VDC |
36-72VDC |
24VDC |
41.6A |
800W |
200 |
89% |
|
MDI-H1000-110S110 |
110VDC |
66-154VDC |
110VDC |
9.1A |
1000W |
600 |
89% |
|
MDI-H1000-110S48 |
110VDC |
66-154VDC |
48VDC |
20.8A |
1000W |
300 |
89% |
|
MDI-H1000-600S24 |
600VDC |
400-800VDC |
24VDC |
41.6A |
800W |
200 |
89% |
|
MDI-H1000-600S110 |
600VDC |
400-800VDC |
110VDC |
9.1A |
1000W |
400 |
89% |
Only the typical models are listed. If you need another models, please inform the power,input and output voltage, then feel free to call us.
II. FEATURES
| 1 |
High output current and power |
|
2 |
Design for high reliability, long lifetime |
|
3 |
Wide range of power,easy to upgrade |
|
4 |
High and low voltage input is for option |
|
5 |
Good appearance,Stable performance |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
|
Rated value(VDC) |
Voltage Range(VDC) |
|
24VDC |
18-36 VDC |
|
48VDC |
36-72VDC |
|
110VDC |
66-154VDC |
|
300VDC |
200-400VDC |
|
600VDC |
400-800VDC |
IV. OUTPUT CHARACTERISTIC
|
Parameter |
Value |
|
Power |
600-1000W |
|
Voltage Set-point Accuracy |
±2% |
|
Output Current |
5-80A |
|
Output Voltage |
12-110VDC |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.5% |
|
Output Current Limiting |
120%(Typ) |
V. PROTECTIVE CHARACTERISTIC
|
1 |
Input under voltage protection |
|
2 |
Output over voltage protection |
|
3 |
Over temperature protection |
|
4 |
Output over current protection |
|
5 |
Output short circuit protection |
GENERAL CHARACTERISTIC
|
Parameter |
Value |
|
Switching Frequency |
100-200KHz |
|
lsolation Resistance |
200MΩ |
lsolation Voltage
|
Parameter |
Value |
|
Input-Output |
>1500VDC |
|
Input-Case |
>1050VDC |
|
Output-Case |
>500VDC |
Environmental Characteristics
|
Parameter |
Value |
|
|
Case Temperature |
Industry |
-25 – +85℃ |
|
Military l |
-40 – +85℃ |
|
|
Military II |
-55 – +85℃ |
|
|
Storage Temperature |
Industry |
-45 – +105℃ |
|
Military |
-55 – +105℃ |
|

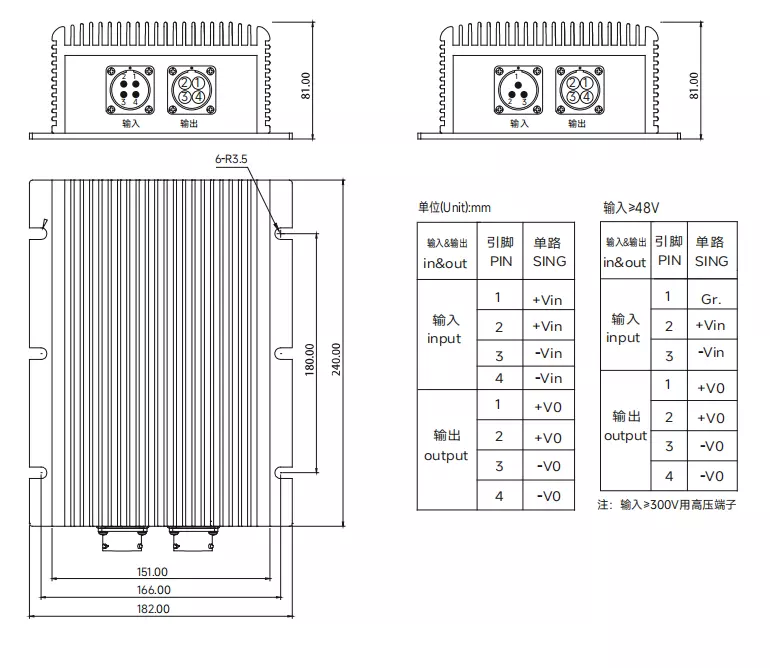

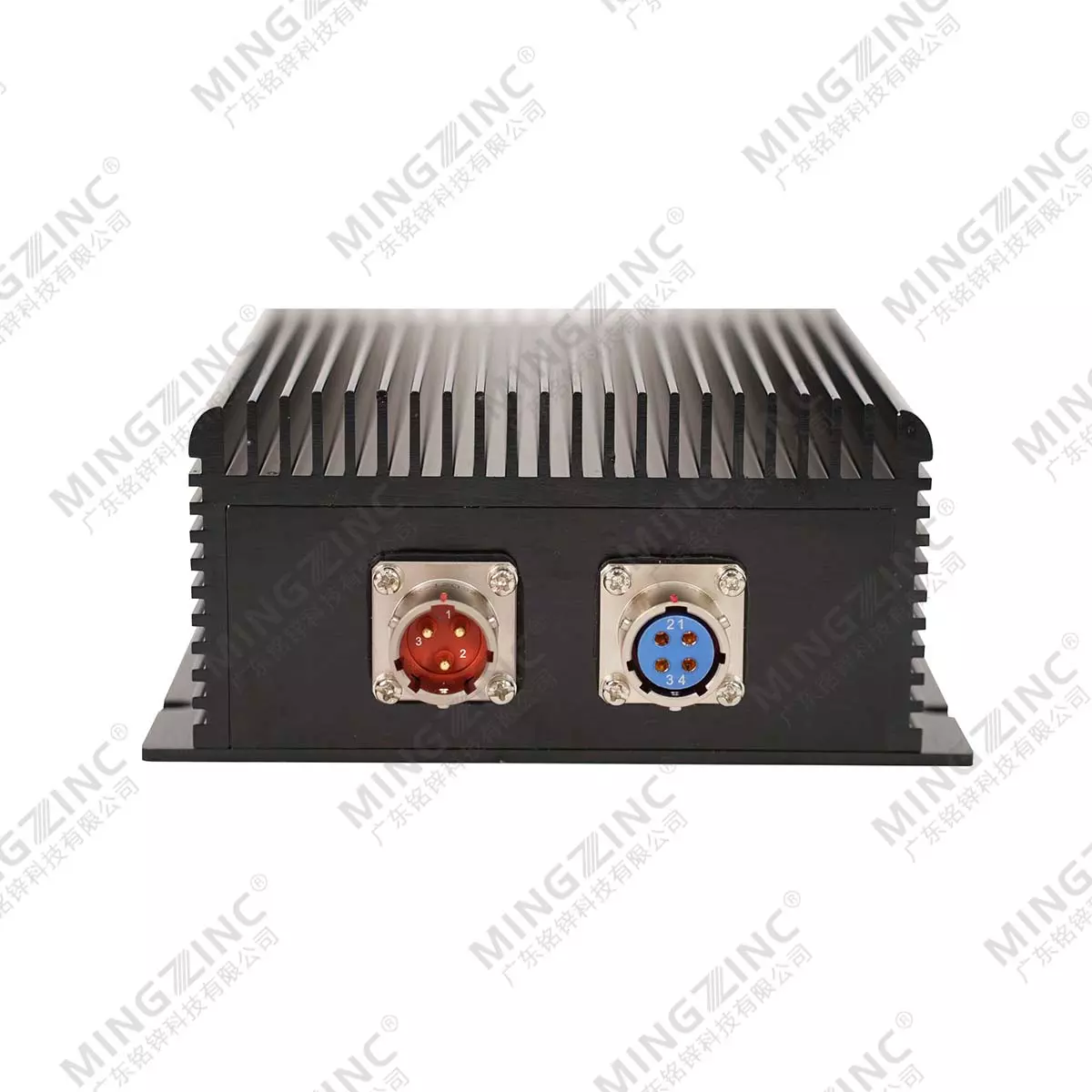

VI. MECHANICAL DRAWING AND PIN DEFINITION
