MDM 3000-4000W Series Isolated DC-DC Converters Modules
Products
Latest News
Video Description
I. MODELS LIST
Single Channels Output
|
Model |
Input Voltage(VDC) |
Input Voltage Range(VDC) |
Output Voltage(VDC) |
Output Current(A) |
Output Power(W) |
Ripple And Noise(mv) |
Efficiency (Typ) |
|
MDM2000-24S14 |
24VDC |
18-32VDC |
14VDC |
143A |
2000W |
200 |
90% |
|
MDM3000-24S27.5 |
24VDC |
18-32VDC |
27.5VDC |
109A |
3000W |
200 |
91% |
|
MDM4000-24S48 |
24VDC |
18-32VDC |
48VDC |
83.3A |
4000W |
300 |
92% |
|
MDM4000-24S58 |
24VDC |
18-32VDC |
58VDC |
68.9A |
4000W |
500 |
92% |
|
MDM2000-48S14 |
48VDC |
30-60VDC |
14VDC |
143A |
2000W |
200 |
90% |
|
MDM3000-48S27.5 |
48VDC |
30-60VDC |
27.5VDC |
109A |
3000W |
200 |
91% |
|
MDM4000-48S48 |
48VDC |
30-60VDC |
48VDC |
83.3A |
4000W |
300 |
92% |
|
MDM4000-48S58 |
48VDC |
30-60VDC |
58VDC |
68.9A |
4000W |
500 |
92% |
|
MDM2000-72S14 |
72VDC |
45-95VDC |
14VDC |
143A |
2000W |
200 |
90% |
|
MDM3000-72S27.5 |
72VDC |
45-95VDC |
27.5VDC |
109A |
3000W |
200 |
91% |
|
MDM4000-72S48 |
72VDC |
45-95VDC |
48VDC |
83.3A |
4000W |
300 |
92% |
|
MDM4000-72S58 |
72VDC |
45-95VDC |
58VDC |
68.9A |
4000W |
500 |
92% |
|
MDM2000-96S14 |
96VDC |
80-140VDC |
14VDC |
143A |
2000W |
200 |
90% |
|
MDM3000-96S27.5 |
96VDC |
80-140VDC |
27.5VDC |
109A |
3000W |
200 |
91% |
|
MDM4000-96S48 |
96VDC |
80-140VDC |
48VDC |
83.3A |
4000W |
300 |
92% |
|
MDM4000-96S58 |
96VDC |
80-140VDC |
58VDC |
68.9A |
4000W |
500 |
92% |
|
MDM2000-144S14 |
144VDC |
100-170VDC |
14VDC |
143A |
2000W |
200 |
90% |
|
MDM3000-144S27.5 |
144VDC |
100-170VDC |
27.5VDC |
109A |
3000W |
200 |
91% |
|
MDM4000-144S48 |
144VDC |
100-170VDC |
48VDC |
83.3A |
4000W |
300 |
92% |
|
MDM4000-144S58 |
144VDC |
100-170VDC |
58VDC |
68.9A |
4000W |
500 |
92% |
|
MDM2000-210S14 |
210VDC |
160-260VDC |
14VDC |
143A |
2000W |
200 |
90% |
|
MDM3000-210S27.5 |
210VDC |
160-260VDC |
27.5VDC |
109A |
3000W |
200 |
91% |
|
MDM4000-210S48 |
210VDC |
160-260VDC |
48VDC |
83.3A |
4000W |
300 |
92% |
|
MDM4000-210S58 |
210VDC |
160-260VDC |
58VDC |
68.9A |
4000W |
500 |
92% |
Only the typical models are listed. If you need another models , please inform the power,input and output voltage,then feel free to call us.
II. FEATURES
|
1 |
Low voltage input |
|
2 |
High power ,fan cooling |
|
3 |
High efficiency，high reliability,long service life design |
| 4 |
Good appearance, good heat dissipation |
|
5 |
CAN communication |
|
6 |
Various protection functions |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
|
Rated value(VDC) |
Voltage Range(VDC) |
|
24VDC |
18-32VDC |
|
48VDC |
30-60VDC |
|
72VDC |
45-95VDC |
|
96VDC |
80-140VDC |
|
144VDC |
100-170VDC |
IV. OUTPUT CHARACTERISTIC
|
Parameter |
Value |
|
Power |
4000-6000W |
|
Voltage Set-point Accuracy |
±2% |
|
Output Current |
68-143A |
|
Output Voltage |
14-58V |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.5% |
|
Output Current Limiting |
0.5-1A greater than the rated output current. |
V. PROTECTIVE CHARACTERISTIC
|
1 |
Input under voltage protection |
|
2 |
Input over voltage protection |
|
3 |
Over temperature protection |
|
4 |
Output over current protection |
|
5 |
Output short circuit protection |
GENERAL CHARACTERISTIC
|
Parameter |
Value |
|
lsolation Resistance |
50MΩ |
lsolation Voltage
|
Parameter |
Value |
|
Input-Output |
>3000VDC |
|
Input-Case |
>1000VDC |
|
Output-Case |
>500VDC |
Environmental Characteristics
|
Parameter |
Value |
|
|
Case Temperature |
Industry |
-40~ +50℃ |
|
Storage Temperature |
Industry |
-45 ~ +105℃ |

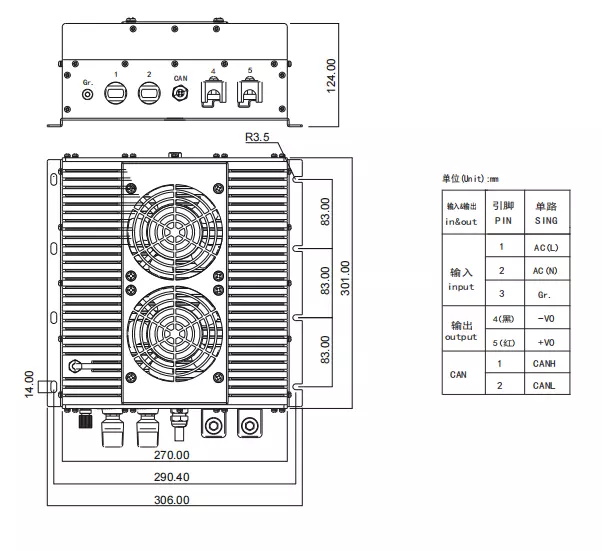

VI. MECHANICAL DRAWING AND PIN DEFINITION
