Optimizing Module Power Supply Performance Through Load System Understanding

25 Jul, 2025 3:07pm

1. What is Electrical Load?

In electrical engineering, a load refers to any component or device that consumes electrical power from a power source. It converts electrical energy into other forms such as heat, light, motion, or electromagnetic fields. Understanding the nature of loads is essential when selecting and designing a reliable module power supply, especially in complex electrical systems.

1.1 Types of Electrical Loads

Electrical loads can be broadly classified into the following categories:

Load Type	Description	Common Examples
Resistive Load	Converts electrical energy into heat without phase shift	Incandescent bulbs, electric heaters
Inductive Load	Stores energy in a magnetic field; current lags voltage	Motors, transformers, fans
Capacitive Load	Stores energy in an electric field; current leads voltage	Capacitor banks, UPS systems
Non-linear Load	Draws current in non-sinusoidal waveform; may cause harmonics	Computers, LED drivers, switch-mode power supplies
Dynamic Load	Varies over time, often rapidly and unpredictably	Robots, UAVs, automotive systems

1.2 Key Characteristics of Loads

Each load type has unique characteristics that influence how a module power supply responds. Key factors include:

Impedance (Z): Resistance to AC current flow, including resistive (R), inductive (L), and capacitive (C) elements.
Power Factor (PF): The ratio of real power to apparent power. Inductive and capacitive loads can reduce power factor, affecting efficiency.
Inrush Current: Sudden surge of current when a device is powered on, common in inductive loads.
Transient Behavior: How the load responds to rapid changes in voltage or current.
Thermal Load Impact: Continuous high load can cause heat buildup, impacting component lifespan.

A clear understanding of these characteristics helps design robust power delivery systems.

1.3 Comparison Between Different Load Types

Here’s a comparative overview of typical load behaviors:

Property	Resistive Load	Inductive Load	Capacitive Load	Non-linear Load
Power Factor	1.0	< 1.0 (lagging)	< 1.0 (leading)	Variable
Current Phase Angle	In phase	Lags voltage	Leads voltage	Irregular
Inrush Current	Low	High	Moderate	Spiky/Random
Harmonic Distortion	Minimal	Low	Low	High
Stress on Power Supply	Moderate	High	Moderate	Very high

Choosing the right module power supply depends heavily on understanding how the load behaves under both normal and transient conditions.

2. How Different Industries Understand and Apply Load Systems

In practical applications, the nature of electrical loads varies significantly across industries. Understanding these variations helps optimize module power supply performance to ensure stability, efficiency, and safety.

2.1 Industrial Automation

Typical Loads: Servo motors, solenoid valves, sensors, PLCs

Industrial automation systems involve precise and responsive actuation components that impose frequent load fluctuations and rapid start-stop cycles on power supplies. Motors introduce inductive loads with high inrush current, while sensors and control boards are more sensitive and require low-ripple DC outputs.

Key Requirements:

Fast transient response
Overcurrent and inrush protection
Multiple output voltages for control and actuation modules

2.2 Telecommunications and Data Centers

Typical Loads: Routers, base stations, switches, signal amplifiers

Telecom and data center infrastructure requires continuous, noise-free power to ensure uninterrupted signal transmission. These systems primarily involve resistive and non-linear loads, often running 24/7.

Key Requirements:

High efficiency and power density
Redundant power configuration
EMI filtering for signal integrity

2.3 Renewable Energy Systems

Typical Loads: Inverters, battery charge controllers, monitoring devices

In solar and wind systems, the loads vary due to environmental conditions and storage charge cycles. These systems often involve mixed resistive-inductive loads and require wide voltage ranges and intelligent control.

Key Requirements:

Wide input voltage range
Load balancing and MPPT compatibility
Efficiency at partial load conditions

2.4 Medical Equipment

Typical Loads: Imaging devices, patient monitors, infusion pumps

Medical systems are highly sensitive to power noise, voltage fluctuations, and unexpected shutdowns. The load systems include a mix of capacitive and dynamic components, and power interruptions may endanger lives.

Key Requirements:

Ultra-stable voltage output
Medical-grade isolation and certification (e.g., IEC 60601)
Backup and fault alarm support

2.5 UAVs and Robotics

Typical Loads: Brushless DC motors, control boards, sensors, payloads

Unmanned systems often impose dynamic and unpredictable loads on power supplies. These include frequent current surges, rapid transitions, and strict weight/power density constraints.

Key Requirements:

High power-to-weight ratio
Wide operating temperature range
Real-time load tracking and voltage regulation

🔧 Suggested Table: Industry Load Profiles & Power Supply Features

Industry	Load Type	Key Challenges	Recommended Module Features
Industrial	Inductive, dynamic	High inrush, EMI	Surge protection, fast transient response
Telecom	Resistive, non-linear	24/7 load, harmonics	High efficiency, EMI suppression
Renewable Energy	Mixed, variable	Fluctuating load, wide input	Wide input range, MPPT compatible
Medical	Sensitive, capacitive	Noise, safety critical	Low ripple, isolation, IEC certification
UAV / Robotics	Dynamic, pulsed	Weight limit, rapid load change	Compact, high-density, load tracking

Recommended reading: Modular Power Supplies in Solar Energy

3. Methods to Test and Analyze Load Behavior

Proper testing of load behavior is essential to ensure a module power supply operates reliably under real-world conditions. Different test methods reveal how loads interact with the power supply in terms of current demand, transient response, voltage regulation, and thermal performance.

3.1 Resistive Load Bank Testing

Purpose:
To verify the steady-state power delivery capacity of the module power supply.

Method:
Fixed or variable resistors simulate constant power consumption. The output voltage, current, and temperature of the module are monitored.

Applications:
Used for thermal stress evaluation, power derating tests, and basic performance validation.

3.2 Inductive Load Simulation

Purpose:
To evaluate the power module’s ability to handle high inrush current and back EMF from inductive components like motors or transformers.

Method:
Use real inductive loads (e.g., coil, motor) or simulated inductors through programmable test circuits. Observe voltage drop, response delay, and protection trigger points.

Applications:
Essential in applications such as industrial drives, automotive control, and renewable energy systems.

3.3 Dynamic Load Testing

Purpose:
To assess the transient response of the module power supply to rapidly changing load conditions.

Method:
An electronic load (E-load) is programmed to switch between different current levels (e.g., 25% ⇄ 75%) within microseconds. The resulting output voltage response is measured via oscilloscope.

Key Metrics:

Load regulation
Voltage recovery time
Peak deviation

Applications:
Highly relevant for robotics, medical, and telecommunications sectors.

3.4 Electronic Load Testing (DC Load Tester)

Purpose:
To test under constant current (CC), constant resistance (CR), constant voltage (CV), or constant power (CP) conditions.

Method:
Digital DC electronic load units automatically control current draw. They offer precise control and real-time data logging.

Advantages:

Fully automated
Multiple operating modes
High reproducibility

Applications:
Standard method for lab evaluation of all power module products.

3.5 Real-World Load Profiling

Purpose:
To understand how actual connected equipment (the real load) behaves during operation.

Method:
Use a high-bandwidth oscilloscope, current probes, and power analyzers to capture detailed voltage/current waveforms and load variations over time.

Benefits:

Accurate replication of real-world behavior
Identification of load-induced anomalies
Improved product-field compatibility

Applications:
Useful in final-stage validation for automotive, UAV, and medical applications.

3.6 Thermal Response Testing Under Load

Purpose:
To verify the thermal performance of the module power supply when delivering high load current over time.

Method:
Under controlled ambient temperature, load the module to 80–100% rated power for an extended period. Monitor internal temperature sensors or use thermal imaging.

Applications:
Important for passively cooled designs or compact embedded power modules.

💡 Summary Table: Load Testing Techniques

Test Method	Target Behavior	Typical Equipment	Application Scenario
Resistive Load Bank	Steady-state performance	Power resistors	Heat stress, stability tests
Inductive Simulation	Inrush & EMF response	Coils, motors	Industrial, motor drive systems
Dynamic Load Switching	Transient handling capability	Electronic load, scope	Telecom, robotics, fast-switching systems
DC Load Tester Modes	Regulated mode operation	Programmable E-load	Universal lab testing
Real Load Profiling	Actual usage behavior	Scope + power analyzer	UAVs, medical devices, embedded systems
Thermal Response Test	Overheat protection, long-term load	Thermal cam, IR sensors	Compact, fanless, or sealed power modules

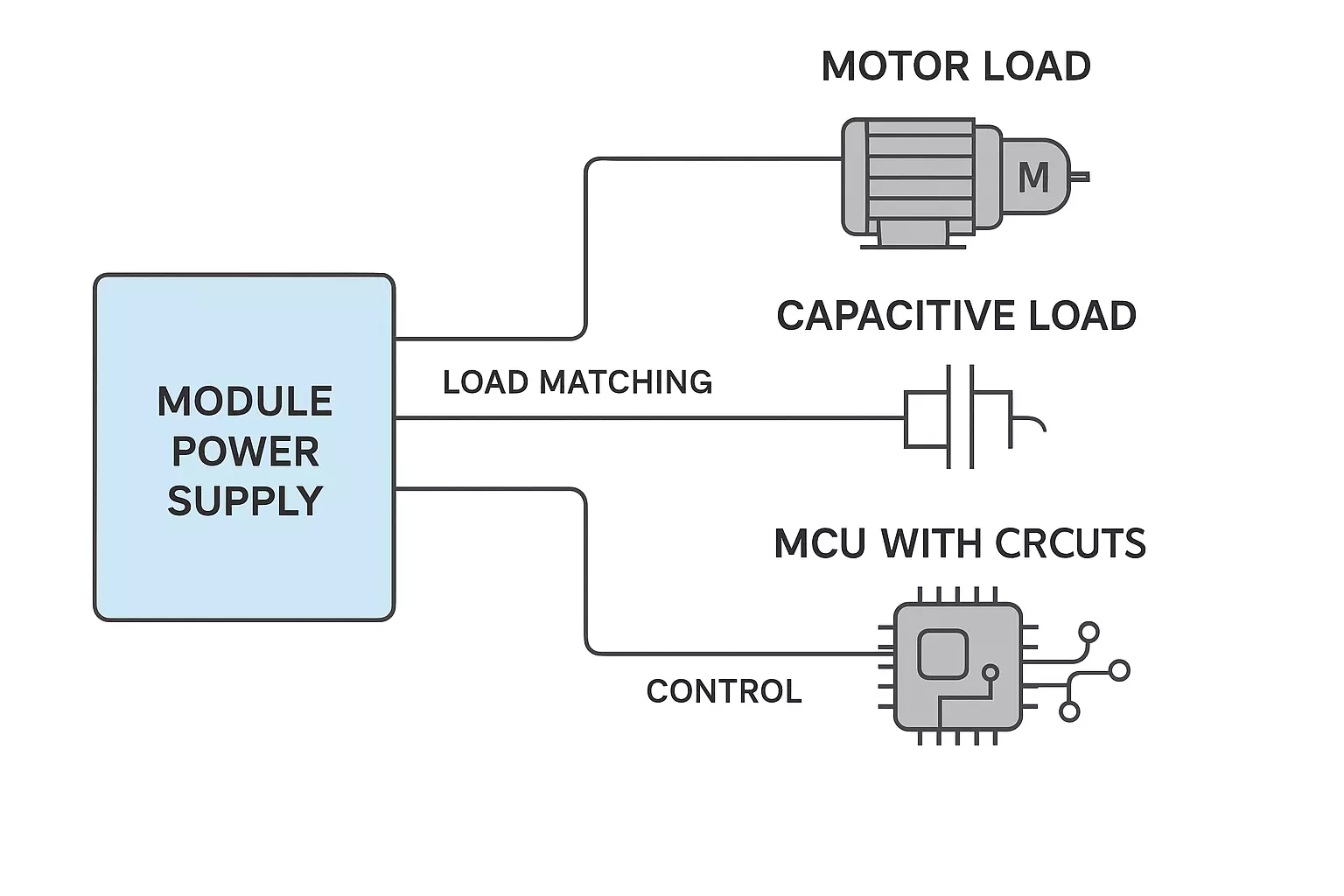

4. Module Power Supply and Load Systems: Interaction and Optimization

A module power supply must do more than just deliver voltage—it must adapt to the characteristics of the load it powers. Whether dealing with dynamic pulses, inductive kicks, or high-precision sensors, the interaction between load and power supply is a key factor in overall system stability and performance.

4.1 Why Load Matching is Critical for Module Power Supply

When a power module is not properly matched to its load, several issues can occur:

Voltage drops or overshoots under transient conditions
Overcurrent trips during motor startup or capacitor charging
Thermal overload due to prolonged high current
Electromagnetic interference (EMI) from unstable load behavior

Example:
An inductive motor load with a 5× inrush current may trigger shutdown on a standard power module unless designed with soft-start or inrush current control.

Matching load profiles to power module specifications is essential for maximizing lifespan and ensuring uninterrupted performance.

4.2 Load Response Optimization in Power Module Design

Modern power module designs integrate several advanced features to handle diverse load conditions:

Fast Transient Response Circuits
Ensures voltage remains stable during sudden load changes (ΔI/Δt).
Feedback Compensation Networks
Maintains loop stability across varying impedance loads.
Programmable Current Limiting
Protects sensitive or surge-prone loads without false tripping.
EMI Filters and Snubbers
Reduce harmonics and noise caused by non-linear or inductive loads.

Our modules include smart feedback loops and adaptive regulation that automatically tune to load variations.

4.3 Intelligent Power Modules for Dynamic Loads

For systems like robotics, UAVs, or automated machinery, loads change frequently and unpredictably. In these scenarios, intelligent module power supplies provide key advantages:

Digital Control Interface (I²C, CAN, RS485)
Enables real-time monitoring, remote voltage adjustment, and diagnostics.
Auto Load Sensing
Adjusts output parameters based on detected load impedance or behavior.
Multi-Output Coordination
Synchronizes voltage rails for mixed analog-digital loads or sequenced startup.

For example, our intelligent 48V-to-12V DC/DC modules support current-sharing and hot-swap capability, ideal for redundant or high-availability systems.

4.4 Real Application Cases from Our Clients

Here are examples of how our module power supplies are integrated with complex load systems across industries:

✅ Case 1: Industrial Servo Motor Controller

Load: 3-phase BLDC motor with 6A nominal and 30A peak current
Challenge: High inrush, voltage dip, EMI
Solution: FT-PM1205 module with active current limiting, 20ms surge buffer
Result: Stable startup with <3% voltage deviation

✅ Case 2: Medical Imaging System

Load: Capacitive load from X-ray imaging capacitor bank
Challenge: Voltage overshoot, low ripple tolerance
Solution: FT-MD2412 with ultra-low ripple output (<10mVp-p), soft-start enabled
Result: Zero reset errors, noise-free operation

✅ Case 3: UAV Flight Controller

Load: Mixed 5V/12V/24V logic, GPS, gimbal motors
Challenge: Tight weight budget, fluctuating current draw
Solution: Compact 3-output PMU (Power Management Unit) with real-time telemetry
Result: Extended flight time, 15% power efficiency improvement

🛠 Pro Tip: How to Choose the Right Power Module for Your Load

Load Type	Key Concern	Recommended Power Module Feature
Inductive Load	Inrush, back EMF	Soft-start, flyback diode, fast OCP
Capacitive Load	Overshoot, charging current	Programmable slew rate, current limit
Non-linear Load	Harmonics, heat buildup	High switching frequency, EMI filters
Dynamic Load	Transient dips	Fast feedback loop, digital control

5. Conclusion

The relationship between module power supplies and load systems is central to building efficient, stable, and high-performance electrical systems. Whether in industrial automation, telecommunications, medical technology, or UAVs, understanding how different loads behave—and how to test and match them—is essential for selecting the right power solution.

At Guangdong Mingzinc Technology Co., Ltd, we specialize in developing reliable, flexible, and intelligent modular power supplies that adapt to a wide range of load profiles. From inrush protection to real-time monitoring, our products are engineered to meet the rigorous demands of today's electrical systems.

Let our engineering team help you choose the ideal solution for your load system.
Contact us today for technical support, product datasheets, or a custom quote.
