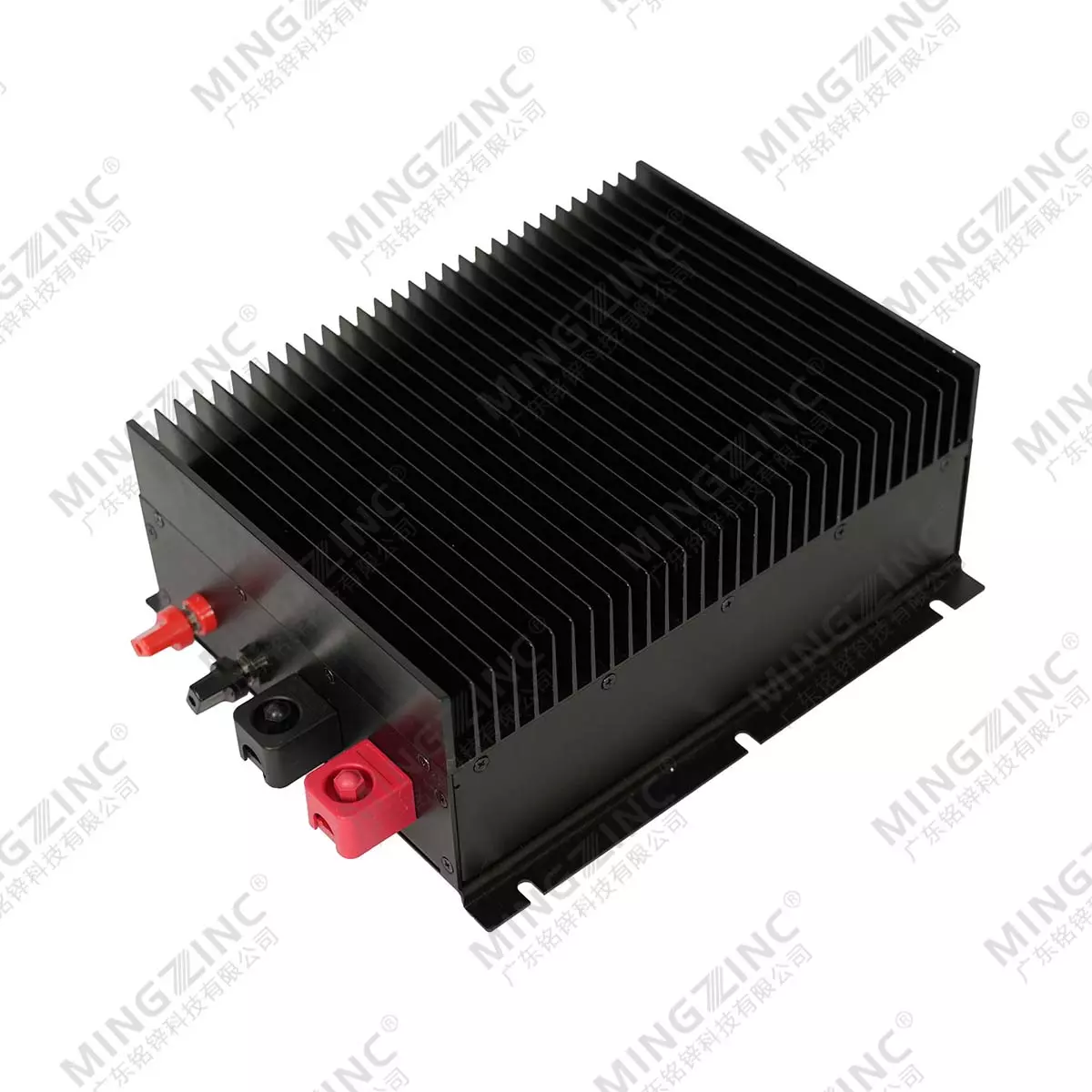

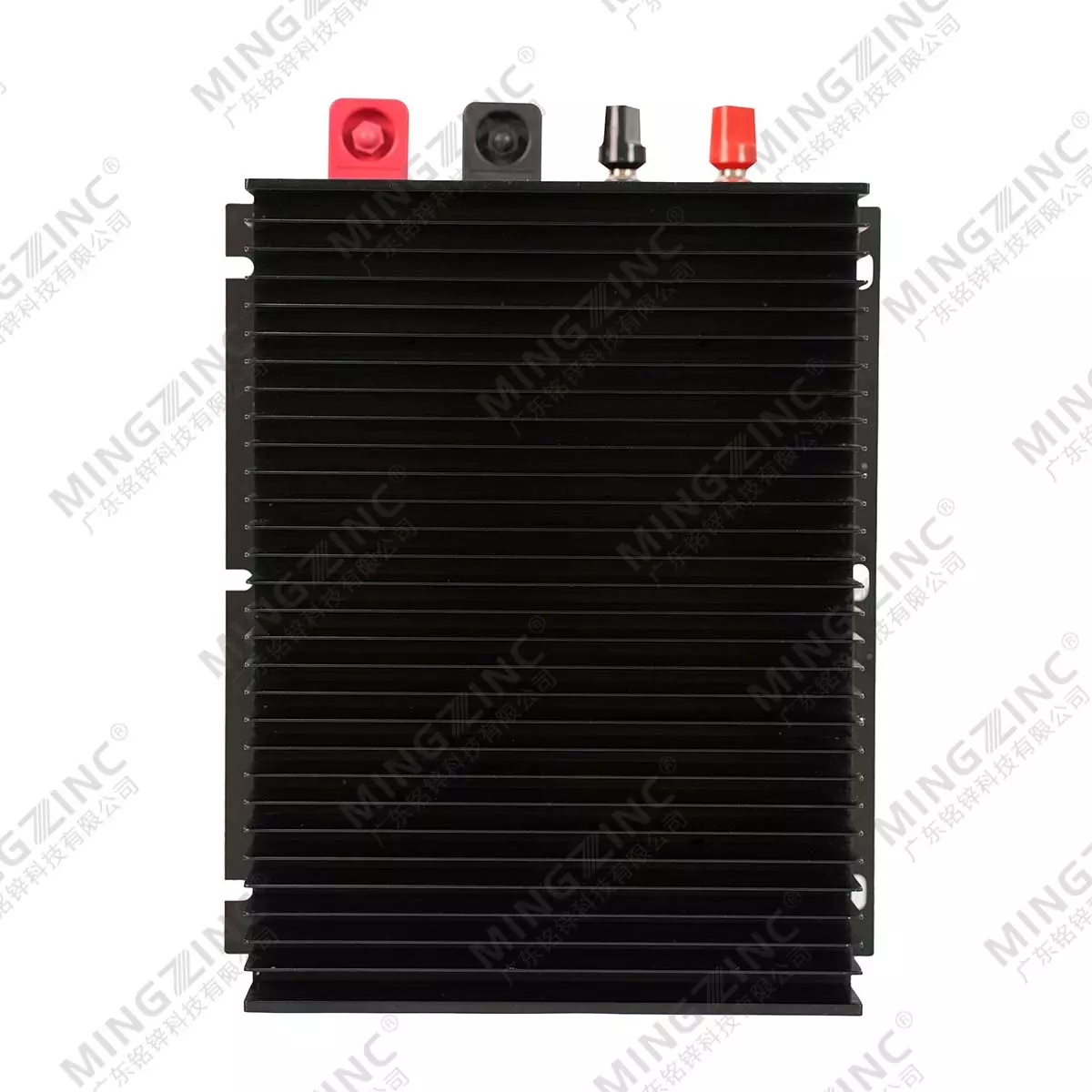

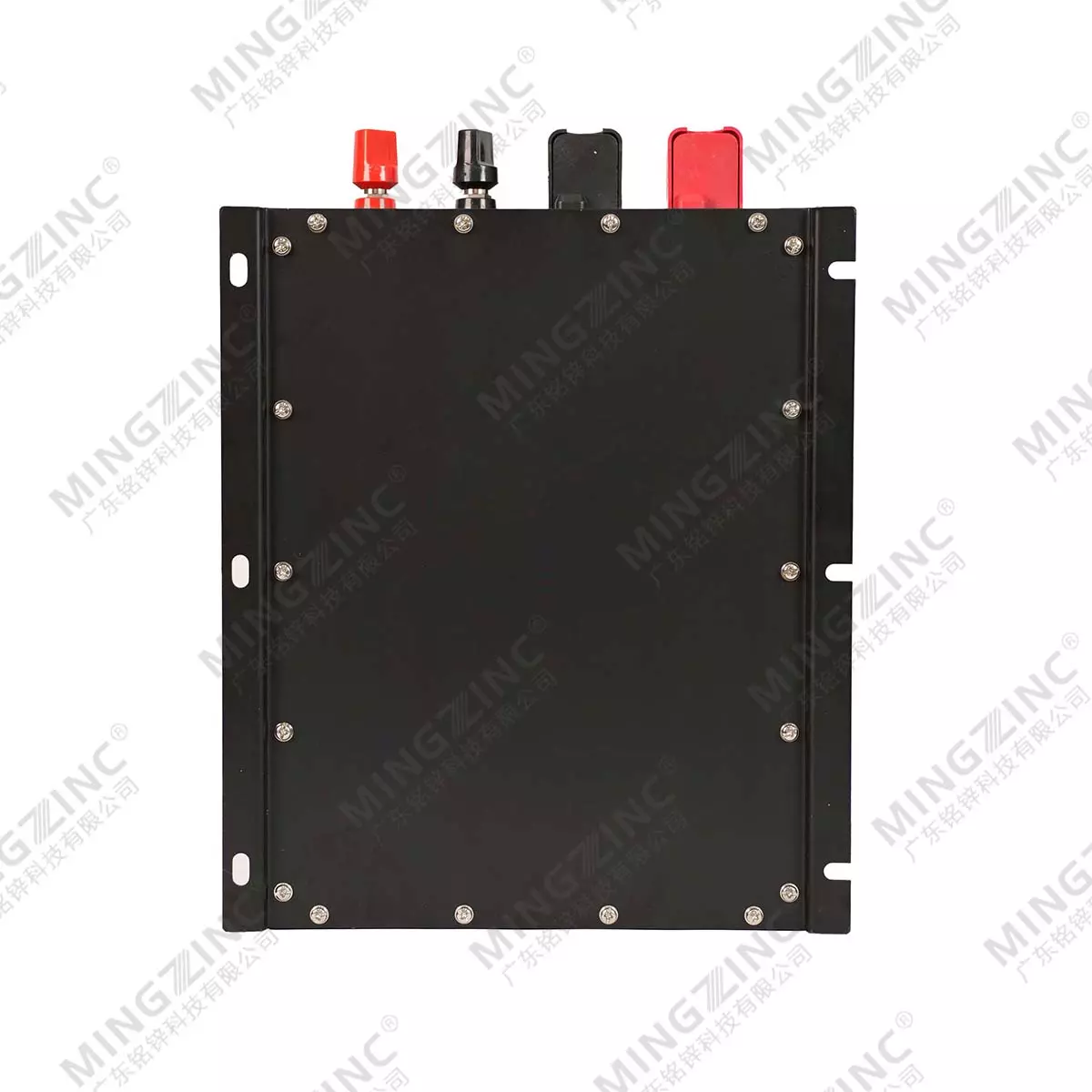

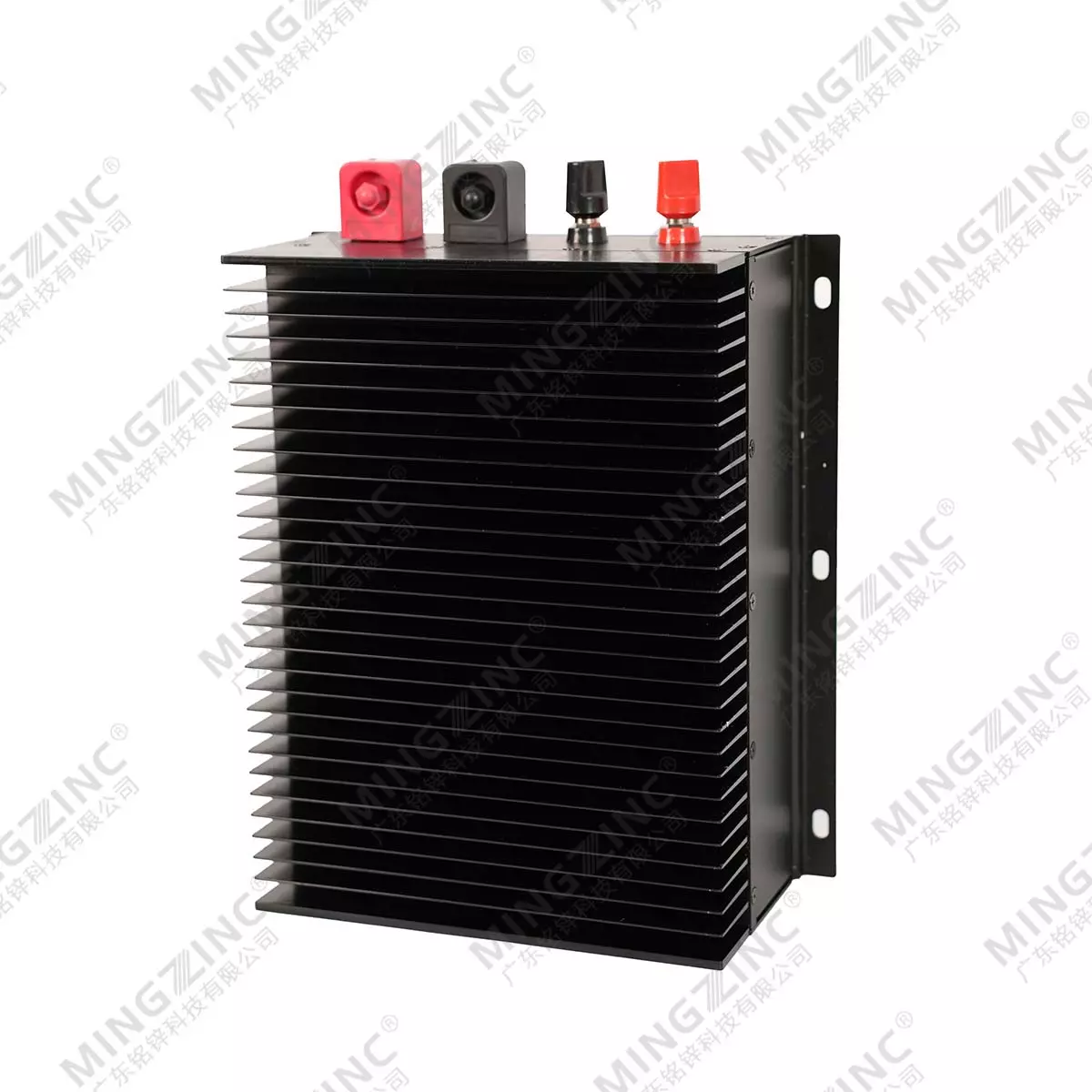

MDK 1200-2000W Series Isolated DC-DC Converters Modules
Products
Latest News
Picture Description
I. MODELS LIST
Single Channels Output
|
Model |
Input Voltage(VDC) |
Input Voltage Range(VDC) |
Output Voltage(VDC) |
Output Current(A) |
Output Power(W) |
Ripple And Noise(mv) |
Efficiency (Typ) |
|
MDK1500-26S27.5 |
26VDC |
20-32VDC |
27.5VDC |
54.5A |
1500W |
300 |
92% |
|
MDK1500-26S48 |
26VDC |
20-32VDC |
48VDC |
31.2A |
1500W |
300 |
92% |
|
MDK1500-48S27.5 |
48VDC |
36-60VDC |
27.5VDC |
54.5A |
1500W |
300 |
92% |
|
MDK1500-48S48 |
48VDC |
36-60VDC |
48VDC |
31.2A |
1500W |
300 |
92% |
|
MDK1500-72S27.5 |
72VDC |
45-95VDC |
27.5VDC |
54.5A |
1500W |
300 |
92% |
|
MDK1500-72S48 |
72VDC |
45-95VDC |
48VDC |
31.2A |
1500W |
300 |
92% |
|
MDK1500-96S27.5 |
96VDC |
80-140VDC |
27.5VDC |
54.5A |
1500W |
300 |
92% |
|
MDK1500-96S48 |
96VDC |
80-140VDC |
48VDC |
31.2A |
1500W |
300 |
92% |
|
MDK1500-144S27.5 |
144VDC |
100-170VDC |
27.5VDC |
54.5A |
1500W |
300 |
92% |
|
MDK1500-144S48 |
144VDC |
100-170VDC |
48VDC |
31.2A |
1500W |
300 |
92% |
|
MDK1500-210S27.5 |
210VDC |
160-260VDC |
27.5VDC |
54.5A |
1500W |
300 |
92% |
|
MDK1500-210S48 |
210VDC |
160-260VDC |
48VDC |
31.2A |
1500W |
300 |
92% |
|
MDK2000-360S24 |
360VDC |
280-480VDC |
24VDC |
83.3A |
2000W |
300 |
92% |
|
MDK2000-360S48 |
360VDC |
280-480VDC |
48VDC |
41.6A |
2000W |
300 |
93% |
|
MDK2000-360S58 |
360VDC |
280-480VDC |
58VDC |
51.7A |
2000W |
500 |
93% |
|
MDK2000-360S72 |
360VDC |
280-480VDC |
72VDC |
34.4A |
2000W |
500 |
95% |
|
MDK2000-360S80 |
360VDC |
280-480VDC |
80VDC |
25A |
2000W |
500 |
95% |
|
MDK2000-360S120 |
360VDC |
280-480VDC |
120VDC |
16.6A |
2000W |
500 |
95% |
|
MDK2000-360S200 |
360VDC |
280-480VDC |
200VDC |
10A |
2000W |
800 |
95% |
|
MDK2000-360S300 |
360VDC |
280-480VDC |
300VDC |
6.6A |
2000W |
800 |
95% |
|
MDK2000-360S400 |
360VDC |
280-480VDC |
400VDC |
5.0A |
2000W |
800 |
95% |
|
MDK2000-560S24 |
560VDC |
350-750VDC |
24VDC |
83.3A |
2000W |
300 |
92% |
|
MDK2000-560S48 |
560VDC |
350-750VDC |
48VDC |
41.6A |
2000W |
300 |
93% |
|
MDK2000-560S58 |
560VDC |
350-750VDC |
58VDC |
51.7A |
2000W |
500 |
93% |
|
MDK2000-560S72 |
560VDC |
350-750VDC |
72VDC |
34.4A |
2000W |
500 |
95% |
|
MDK2000-560S80 |
560VDC |
350-750VDC |
80VDC |
25A |
2000W |
500 |
95% |
|
MDK2000-560S120 |
560VDC |
350-750VDC |
120VDC |
16.6A |
2000W |
500 |
95% |
|
MDK2000-560S200 |
560VDC |
350-750VDC |
200VDC |
10A |
2000W |
800 |
95% |
|
MDK2000-560S300 |
560VDC |
350-750VDC |
300VDC |
6.6A |
2000W |
800 |
95% |
|
MDK2000-560S400 |
560VDC |
350-750VDC |
400VDC |
5.0A |
2000W |
800 |
95% |
|
MDK2000-580S24 |
580VDC |
400-850VDC |
24VDC |
83.3A |
2000W |
300 |
92% |
|
MDK2000-580S48 |
580VDC |
400-850VDC |
48VDC |
41.6A |
2000W |
300 |
93% |
|
MDK2000-580S58 |
580VDC |
400-850VDC |
58VDC |
51.7A |
2000W |
500 |
93% |
|
MDK2000-580S72 |
580VDC |
400-850VDC |
72VDC |
34.4A |
2000W |
500 |
95% |
|
MDK2000-580S80 |
580VDC |
400-850VDC |
80VDC |
25A |
2000W |
500 |
95% |
|
MDK2000-580S120 |
580VDC |
400-850VDC |
120VDC |
16.6A |
2000W |
500 |
95% |
|
MDK2000-580S200 |
580VDC |
400-850VDC |
200VDC |
10A |
2000W |
800 |
95% |
|
MDK2000-580S300 |
580VDC |
400-850VDC |
300VDC |
6.6A |
2000W |
800 |
95% |
|
MDK2000-580S400 |
580VDC |
400-850VDC |
400VDC |
5.0A |
2000W |
800 |
95% |
|
MDK2000-850S24 |
850VDC |
600-1000VDC |
24VDC |
83.3A |
2000W |
300 |
92% |
|
MDK2000-850S48 |
850VDC |
600-1000VDC |
48VDC |
41.6A |
2000W |
300 |
93% |
|
MDK2000-850S58 |
850VDC |
600-1000VDC |
58VDC |
51.7A |
2000W |
500 |
93% |
|
MDK2000-850S72 |
850VDC |
600-1000VDC |
72VDC |
34.4A |
2000W |
500 |
95% |
|
MDK2000-850S80 |
850VDC |
600-1000VDC |
80VDC |
25A |
2000W |
500 |
95% |
|
MDK2000-850S120 |
850VDC |
600-1000VDC |
120VDC |
16.6A |
2000W |
500 |
95% |
|
MDK2000-850S200 |
850VDC |
600-1000VDC |
200VDC |
10A |
2000W |
800 |
95% |
|
MDK2000-850S300 |
850VDC |
600-1000VDC |
300VDC |
6.6A |
2000W |
800 |
95% |
|
MDK2000-850S400 |
850VDC |
600-1000VDC |
400VDC |
5.0A |
2000W |
800 |
95% |
Only the typical models are listed. If you need another models , please inform the power,input and output voltage,then feel free to call us.
II. FEATURES
|
1 |
High and low voltage input is for option |
|
2 |
High power ,natural cooling |
|
3 |
High efficiency |
|
4 |
Good appearance, good heat dissipation |
|
5 |
Design for high reliability,long lifetime |
|
6 |
CAN communication（optional） |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
|
Rated value(VDC) |
Voltage Range(VDC) |
|
26VDC |
20-32VDC |
|
48VDC |
36-60VDC |
|
72VDC |
45-95VDC |
|
96VDC |
80-140VDC |
|
144VDC |
100-170VDC |
|
210VDC |
160-260VDC |
|
360VDC |
280-480VDC |
|
560VDC |
350-750VDC |
|
580VDC |
400-850VDC |
|
850VDC |
600-1000VDC |
IV. OUTPUT CHARACTERISTIC
|
Parameter |
Value |
|
Power |
1200-2000W |
|
Voltage Set-point Accuracy |
±2% |
|
Output Current |
5-100A |
|
Output Voltage |
12-1110VDC |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.5% |
|
Output Current Limiting |
120%(Typ) |
V. PROTECTIVE CHARACTERISTIC
|
1 |
Input under voltage protection |
|
2 |
Input over voltage protection |
|
3 |
Over temperature protection |
|
4 |
Output over current protection |
|
5 |
Output short circuit protection |
GENERAL CHARACTERISTIC
|
Parameter |
Value |
|
lsolation Resistance |
50MΩ |
lsolation Voltage
|
Parameter |
Value |
|
Input-Output |
>3000VDC |
|
Input-Case |
>1000VDC |
|
Output-Case |
>500VDC |
Environmental Characteristics
|
Parameter |
Value |
|
|
Case Temperature |
Industry |
-40~ +50℃ |
|
Storage Temperature |
Industry |
-45 ~ +105℃ |

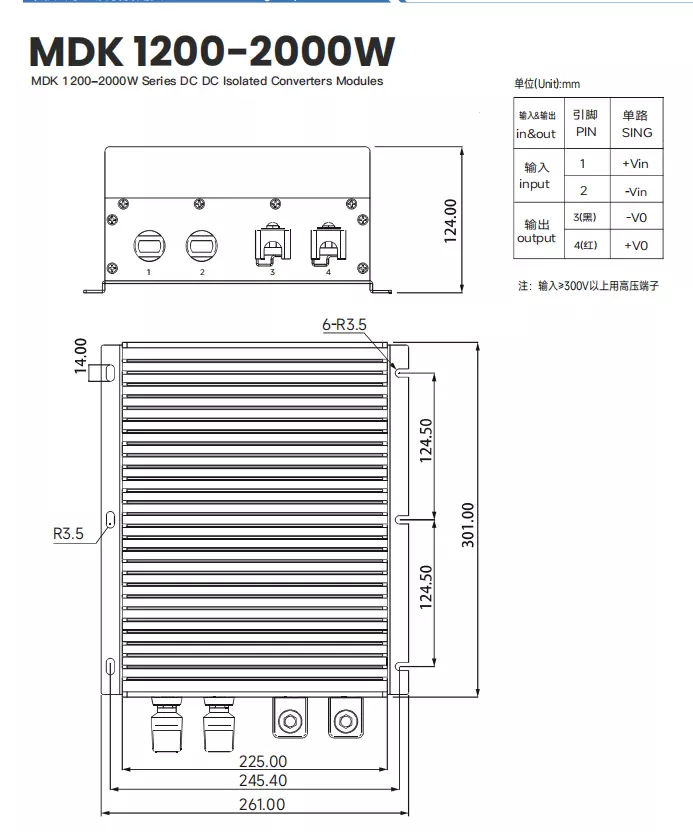

VI. MECHANICAL DRAWING AND PIN DEFINITION
