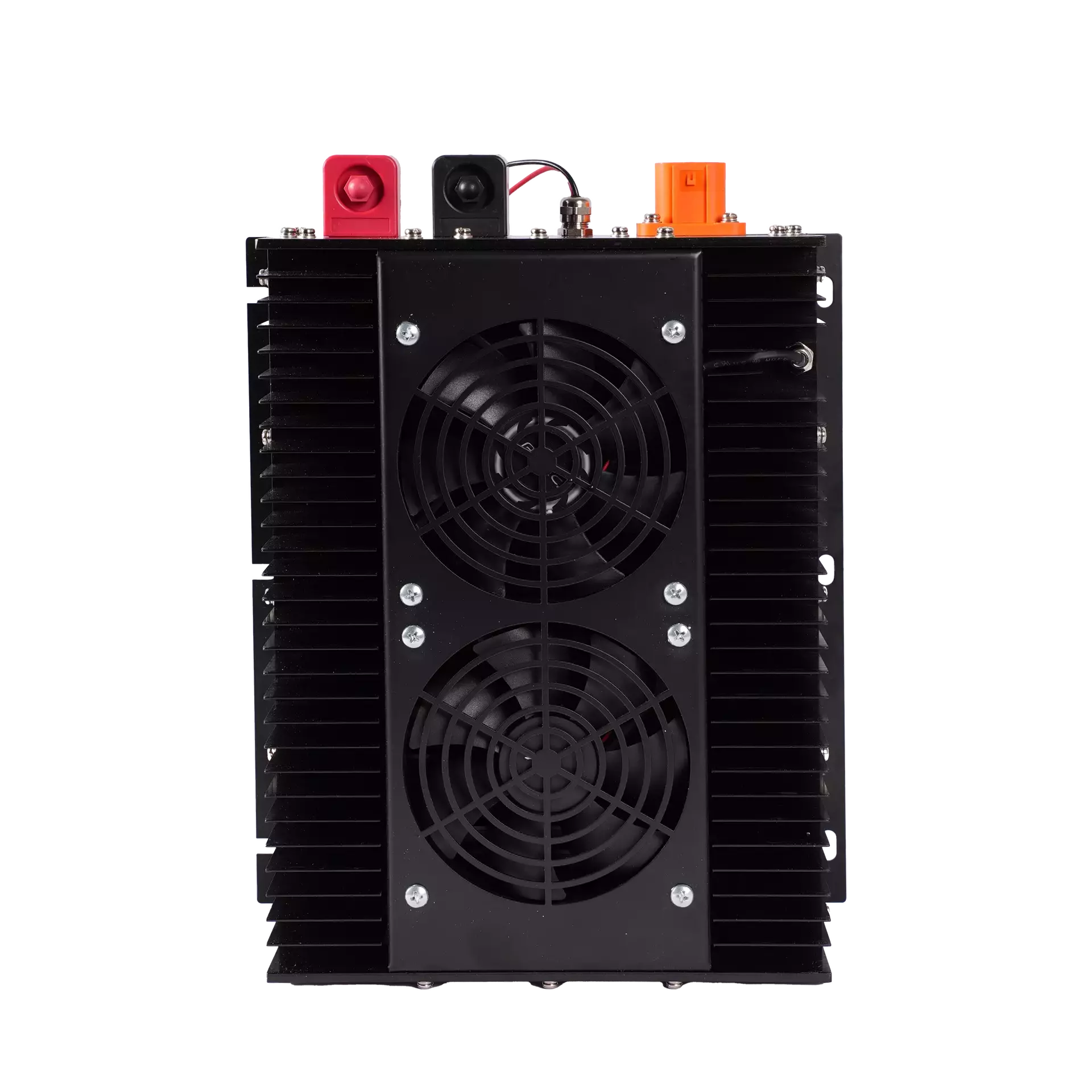

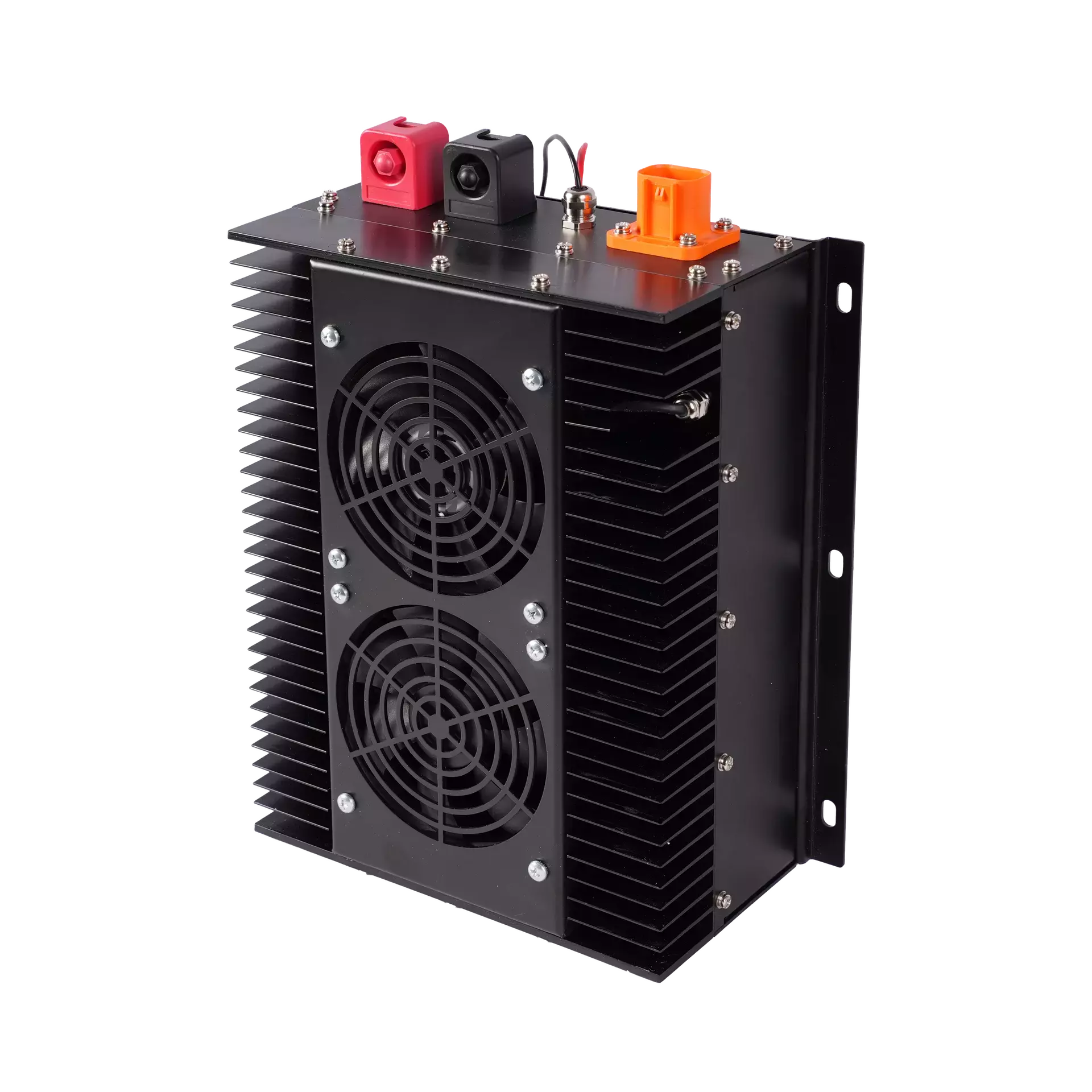

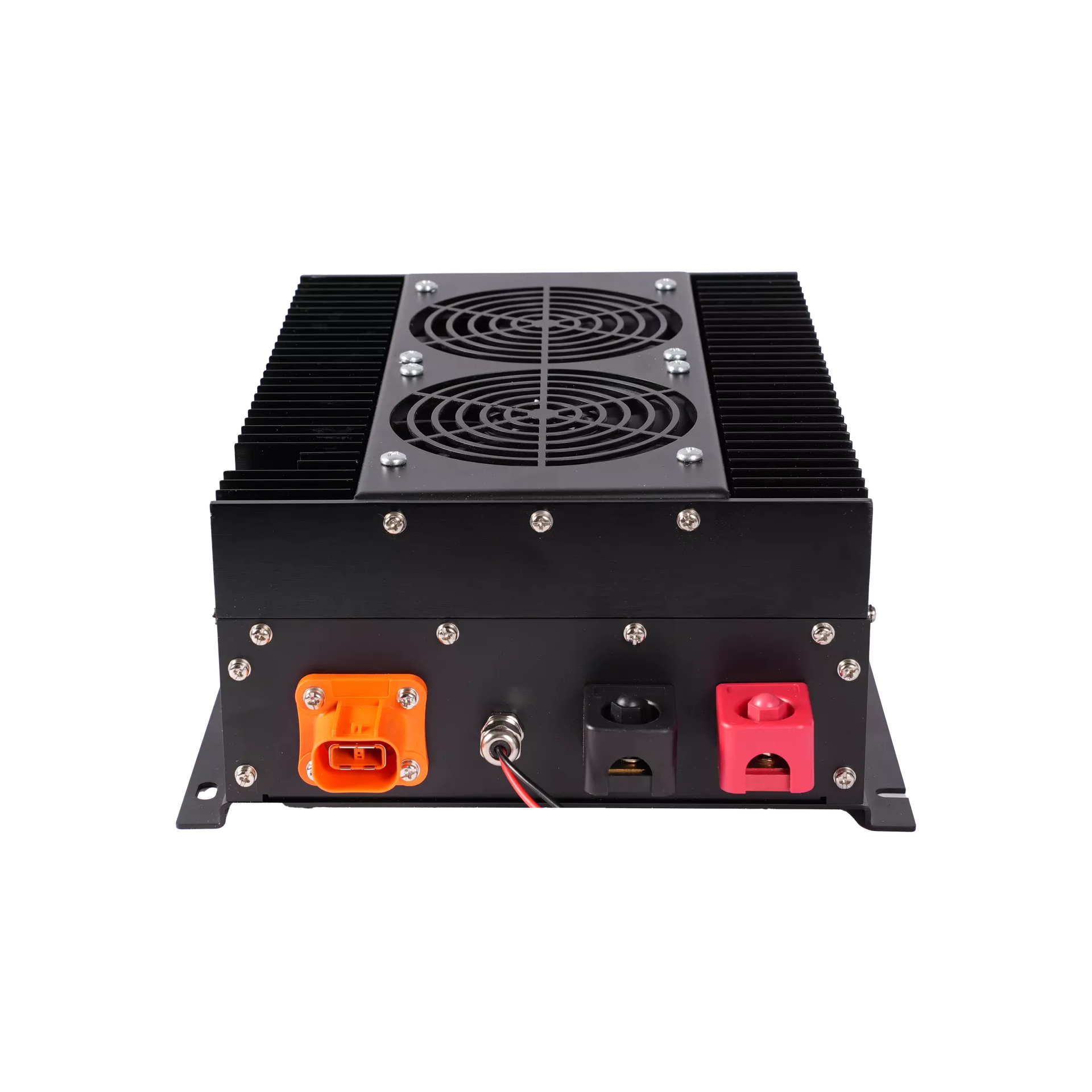

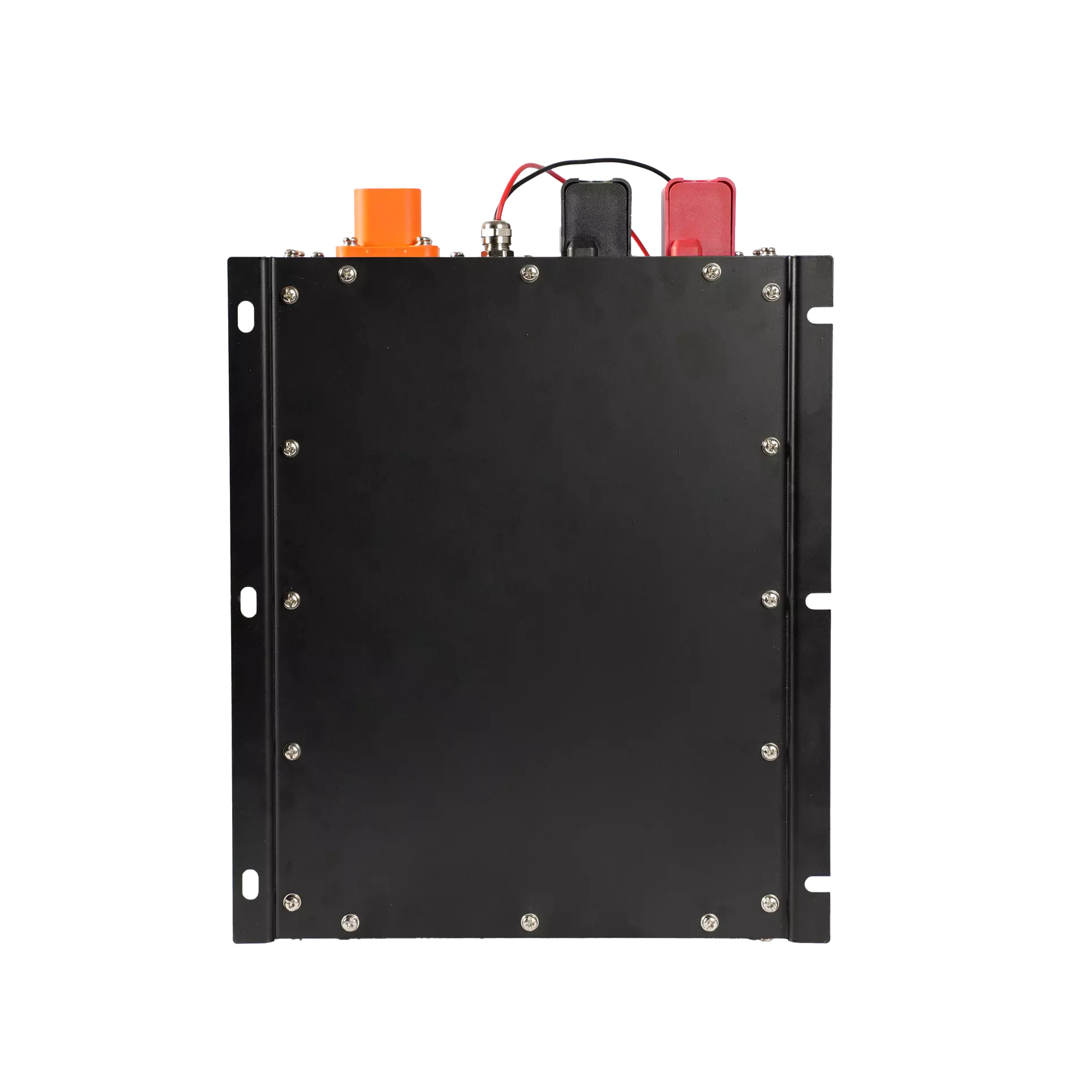

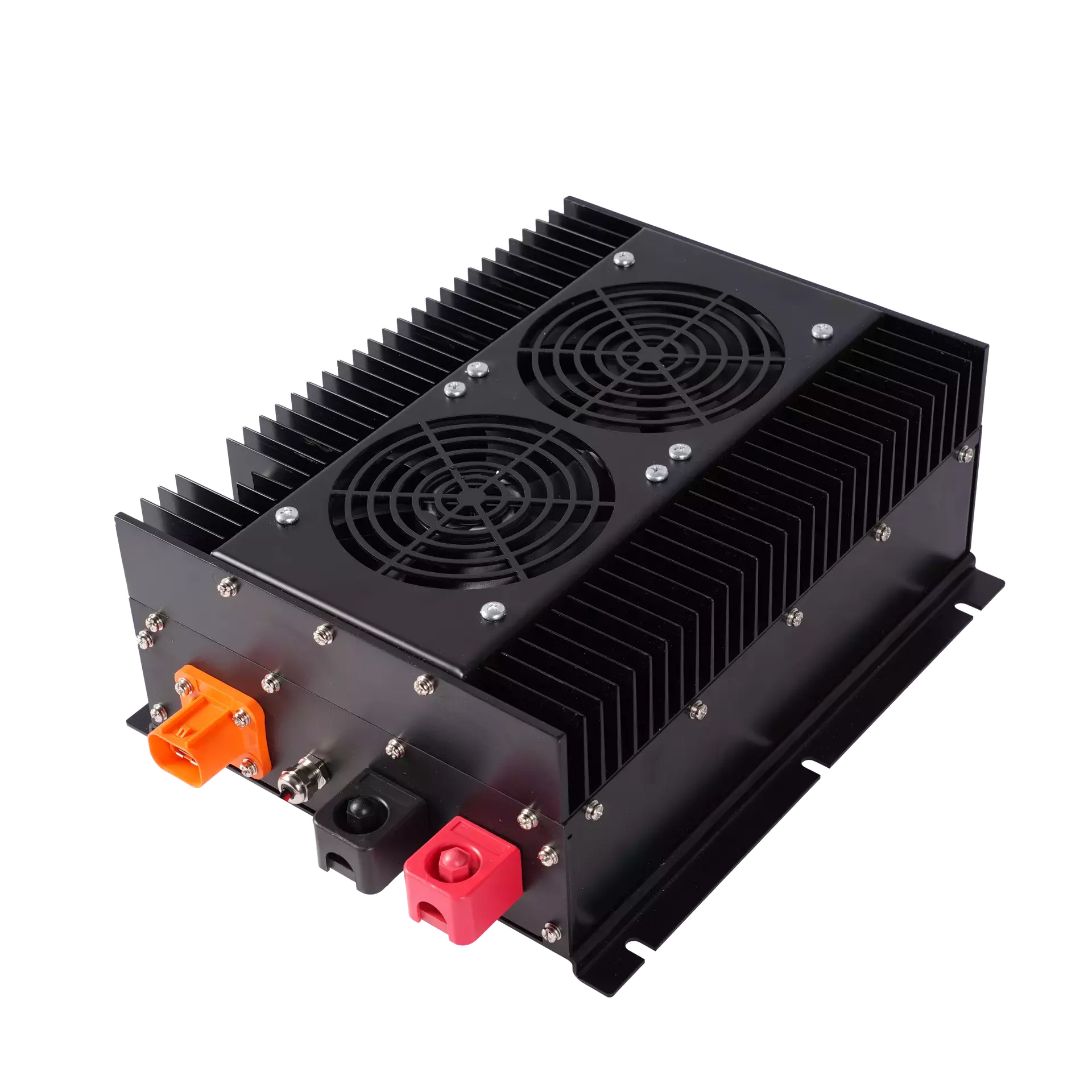

MDN 4000-6000W Series Isolated DC-DC Converters Modules
Products
Latest News
Video Description
I. MODELS LIST
Single Channels Output
|
Model |
Input Voltage(VDC) |
Input Voltage Range(VDC) |
Output Voltage(VDC) |
Output Current(A) |
Output Power(W) |
Ripple And Noise(mv) |
Efficiency (Typ) |
|
MDN3000-360S14 |
360VDC |
280-500VDC |
14VDC |
210A |
3000W |
300 |
92% |
|
MDN4000-360S27.5 |
360VDC |
280-500VDC |
27.5VDC |
145A |
4000W |
300 |
92% |
|
MDN4000-360S48 |
360VDC |
280-500VDC |
48VDC |
83.3A |
4000W |
400 |
93% |
|
MDN4000-360S58 |
360VDC |
280-500VDC |
58VDC |
68.9A |
4000W |
400 |
93% |
|
MDN4000-360S72 |
360VDC |
280-500VDC |
72VDC |
55.5A |
4000W |
500 |
92% |
|
MDN6000-360S96 |
360VDC |
280-500VDC |
96VDC |
62.5A |
6000W |
300 |
93% |
|
MDN6000-360S114 |
360VDC |
280-500VDC |
144VDC |
41.6A |
6000W |
300 |
93% |
|
MDN6000-360S200 |
360VDC |
280-500VDC |
200VDC |
30A |
6000W |
400 |
93% |
|
MDN6000-360S300 |
360VDC |
280-500VDC |
300VDC |
20A |
6000W |
600 |
93% |
|
MDN6000-360S400 |
360VDC |
280-500VDC |
400VDC |
15A |
6000W |
600 |
93% |
|
MDN3000-560S14 |
560VDC |
350-750VDC |
14VDC |
210A |
3000W |
300 |
92% |
|
MDN4000-560S27.5 |
560VDC |
350-750VDC |
27.5VDC |
145A |
4000W |
300 |
92% |
|
MDN4000-560S48 |
560VDC |
350-750VDC |
48VDC |
83.3A |
4000W |
400 |
93% |
|
MDN4000-560S58 |
560VDC |
350-750VDC |
58VDC |
68.9A |
4000W |
400 |
93% |
|
MDN4000-560S72 |
560VDC |
350-750VDC |
72VDC |
55.5A |
4000W |
500 |
92% |
|
MDN6000-560S96 |
560VDC |
350-750VDC |
96VDC |
62.5A |
6000W |
300 |
93% |
|
MDN6000-560S114 |
560VDC |
350-750VDC |
144VDC |
41.6A |
6000W |
300 |
93% |
|
MDN6000-560S200 |
560VDC |
350-750VDC |
200VDC |
30A |
6000W |
400 |
93% |
|
MDN6000-560S300 |
560VDC |
350-750VDC |
300VDC |
20A |
6000W |
600 |
93% |
|
MDN6000-560S400 |
560VDC |
350-750VDC |
400VDC |
15A |
6000W |
600 |
93% |
|
MDN3000-580S14 |
580VDC |
400-850VDC |
14VDC |
210A |
3000W |
300 |
92% |
|
MDN4000-580S27.5 |
580VDC |
400-850VDC |
27.5VDC |
145A |
4000W |
300 |
92% |
|
MDN4000-580S48 |
580VDC |
400-850VDC |
48VDC |
83.3A |
4000W |
400 |
93% |
|
MDN4000-580S58 |
580VDC |
400-850VDC |
58VDC |
68.9A |
4000W |
400 |
93% |
|
MDN4000-580S72 |
580VDC |
400-850VDC |
72VDC |
55.5A |
4000W |
500 |
92% |
|
MDN6000-580S96 |
580VDC |
400-850VDC |
96VDC |
62.5A |
6000W |
300 |
93% |
|
MDN6000-580S114 |
580VDC |
400-850VDC |
144VDC |
41.6A |
6000W |
300 |
93% |
|
MDN6000-580S200 |
580VDC |
400-850VDC |
200VDC |
30A |
6000W |
400 |
93% |
|
MDN6000-580S300 |
580VDC |
400-850VDC |
300VDC |
20A |
6000W |
600 |
93% |
|
MDN6000-580S400 |
580VDC |
400-850VDC |
400VDC |
15A |
6000W |
600 |
93% |
|
MDN3000-850S14 |
850VDC |
600-1100VDC |
14VDC |
210A |
3000W |
300 |
92% |
|
MDN4000-850S27.5 |
850VDC |
600-1100VDC |
27.5VDC |
145A |
4000W |
300 |
92% |
|
MDN4000-850S48 |
850VDC |
600-1100VDC |
48VDC |
83.3A |
4000W |
400 |
93% |
|
MDN4000-850S58 |
850VDC |
600-1100VDC |
58VDC |
68.9A |
4000W |
400 |
93% |
|
MDN4000-850S72 |
850VDC |
600-1100VDC |
72VDC |
55.5A |
4000W |
500 |
92% |
|
MDN6000-850S96 |
850VDC |
600-1100VDC |
96VDC |
62.5A |
6000W |
300 |
93% |
|
MDN6000-850S114 |
850VDC |
600-1100VDC |
144VDC |
41.6A |
6000W |
300 |
93% |
|
MDN6000-850S200 |
850VDC |
600-1100VDC |
200VDC |
30A |
6000W |
400 |
93% |
|
MDN6000-850S300 |
850VDC |
600-1100VDC |
300VDC |
20A |
6000W |
600 |
93% |
|
MDN6000-850S400 |
850VDC |
600-1100VDC |
400VDC |
15A |
6000W |
600 |
93% |
|
MDN3000-1200S14 |
1200VDC |
900-1500VDC |
14VDC |
210A |
3000W |
300 |
92% |
|
MDN4000-1200S27.5 |
1200VDC |
900-1500VDC |
27.5VDC |
145A |
4000W |
300 |
92% |
|
MDN4000-1200S48 |
1200VDC |
900-1500VDC |
48VDC |
83.3A |
4000W |
400 |
93% |
|
MDN4000-1200S58 |
1200VDC |
900-1500VDC |
58VDC |
68.9A |
4000W |
400 |
93% |
|
MDN4000-1200S72 |
1200VDC |
900-1500VDC |
72VDC |
55.5A |
4000W |
500 |
92% |
|
MDN6000-1200S96 |
1200VDC |
900-1500VDC |
96VDC |
62.5A |
6000W |
300 |
93% |
|
MDN6000-1200S114 |
1200VDC |
900-1500VDC |
144VDC |
41.6A |
6000W |
300 |
93% |
|
MDN6000-1200S200 |
1200VDC |
900-1500VDC |
200VDC |
30A |
6000W |
400 |
93% |
|
MDN6000-1200S300 |
1200VDC |
900-1500VDC |
300VDC |
20A |
6000W |
600 |
93% |
|
MDN6000-1200S400 |
1200VDC |
900-1500VDC |
400VDC |
15A |
6000W |
600 |
93% |
Only the typical models are listed. If you need another models , please inform the power,input and output voltage,then feel free to call us.
II. FEATURES
|
1 |
Ultra-high voltage input |
|
2 |
High power ,fan cooling |
|
3 |
High efficiency，high reliability,long service life design |
| 4 |
Good appearance, good heat dissipation |
|
5 |
CAN communication |
|
6 |
Various protection functions |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
|
Rated value(VDC) |
Voltage Range(VDC) |
|
360VDC |
280-500 VDC |
|
560VDC |
350-750 VDC |
|
580VDC |
400-850 VDC |
|
850VDC |
600-1100 VDC |
|
1200VDC |
900-1500 VDC |
IV. OUTPUT CHARACTERISTIC
|
Parameter |
Value |
|
Power |
4000-6000W |
|
Voltage Set-point Accuracy |
±2% |
|
Output Current |
15-210A |
|
Output Voltage |
14-400VDC |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.5% |
|
Output Current Limiting |
0.5-1A greater than the rated output current. |
V. PROTECTIVE CHARACTERISTIC
|
1 |
Input under voltage protection |
|
2 |
Input over voltage protection |
|
3 |
Over temperature protection |
|
4 |
Output over current protection |
|
5 |
Output short circuit protection |
GENERAL CHARACTERISTIC
|
Parameter |
Value |
|
lsolation Resistance |
50MΩ |
lsolation Voltage
|
Parameter |
Value |
|
Input-Output |
>3000VDC |
|
Input-Case |
>2000VDC |
|
Output-Case |
>500VDC |
Environmental Characteristics
|
Parameter |
Value |
|
|
Case Temperature |
Industry |
-40~ +50℃ |
|
Storage Temperature |
Industry |
-45 ~ +105℃ |

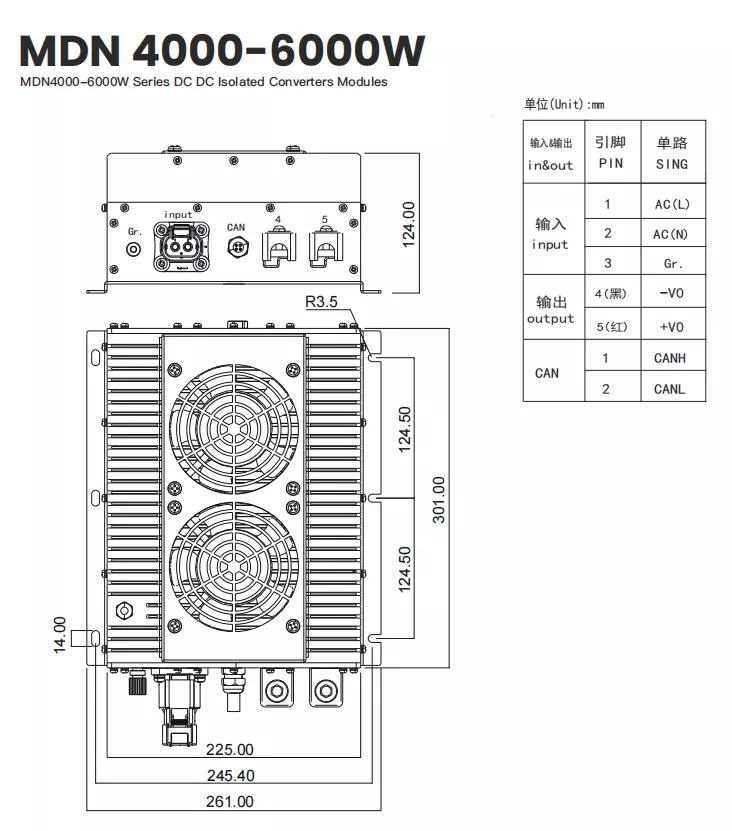

VI. MECHANICAL DRAWING AND PIN DEFINITION
