100W Isolated DC-DC Converter for Railway Signaling System Auxiliary Power

Why Do Railway Signaling Systems Experience Equipment Resets and Communication Failures?

Railway signaling systems are designed for continuous, safety-critical operation. However, engineers often discover that unexpected controller resets, communication interruptions and false alarms are not caused by the signaling equipment itself, but by unstable auxiliary power.

In railway signaling cabinets, trackside equipment and communication systems, controllers, industrial switches and monitoring devices rely on a stable 12VDC supply. Fluctuations on the 110VDC auxiliary bus, electrical transients and electromagnetic interference can compromise system availability. Railway DC/DC converters are therefore typically designed with wide input ranges, galvanic isolation and rugged construction for harsh environments.

Root Cause Analysis

Typical engineering challenges include:

Voltage fluctuations on 110VDC railway auxiliary power systems.
Surge events and EMI affecting signaling equipment.
Vibration, dust, humidity and temperature variations.
Continuous 24/7 operation with minimal maintenance opportunities.
Isolation requirements between control circuits and higher-energy systems.
Engineering Requirements

Engineers need a power solution that provides:

Stable regulated 12VDC output.
Wide 66–154VDC input capability.
Galvanic isolation.
EMI-resistant performance.
Long-term reliability in harsh railway environments.
Flexible customization for railway projects.
How MINGZINC Solves the Problem

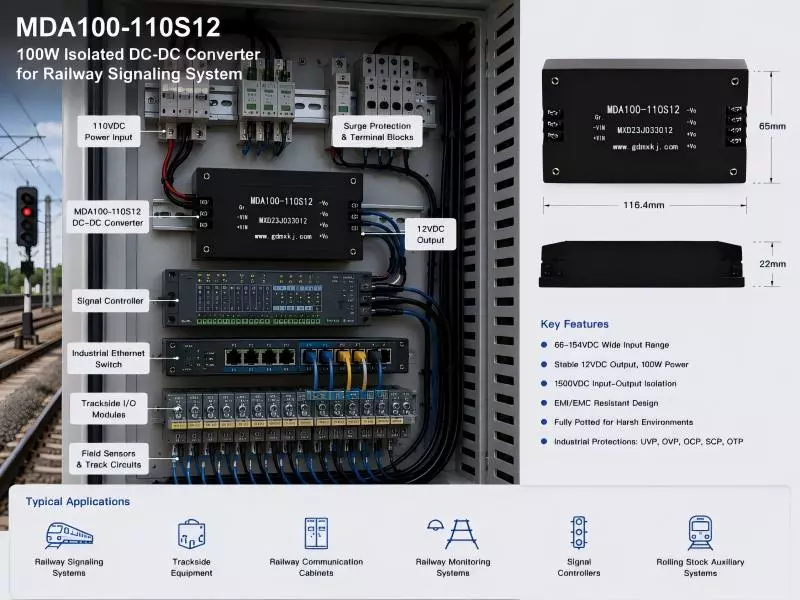

The MDA100-110S12 converts a wide 66–154VDC railway auxiliary input into a stable 12VDC output for signaling controllers, trackside equipment, communication systems and monitoring devices.

Its galvanic isolation minimizes electrical interference, the fully potted construction improves durability in harsh environments, and the EMI-optimized design supports reliable communication. Comprehensive protection functions further improve long-term operational stability.

Why MINGZINC?

MINGZINC develops application-oriented isolated power solutions for industrial and railway projects.

Our capabilities include:

Custom input/output voltage
30W–20KW customization
Galvanic isolation
Fully potted construction
EMI/EMC optimized design
OEM/ODM engineering support
Customer Value

The MDA100-110S12 helps engineers:

Improve railway signaling reliability.
Reduce controller resets and false alarms.
Increase communication stability.
Lower maintenance costs.
Extend equipment service life.
Reduce project operating risk.
Recommended Application

Railway Signaling System Auxiliary Power

Ideal for:

Railway Signaling Systems
Trackside Equipment
Railway Communication Cabinets
Railway Monitoring Systems
Signal Controllers
Railway Electronics
